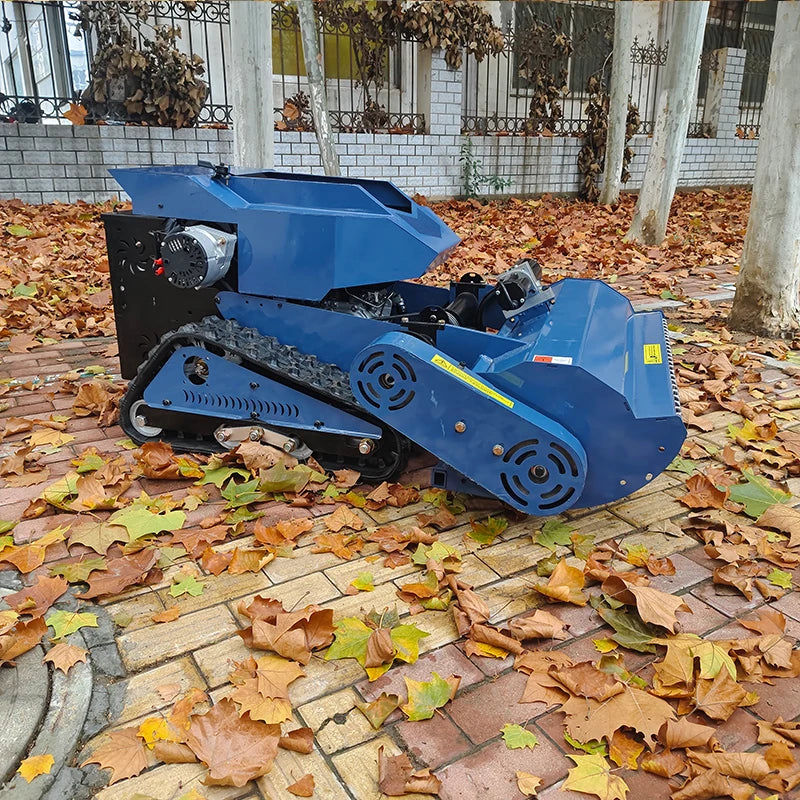

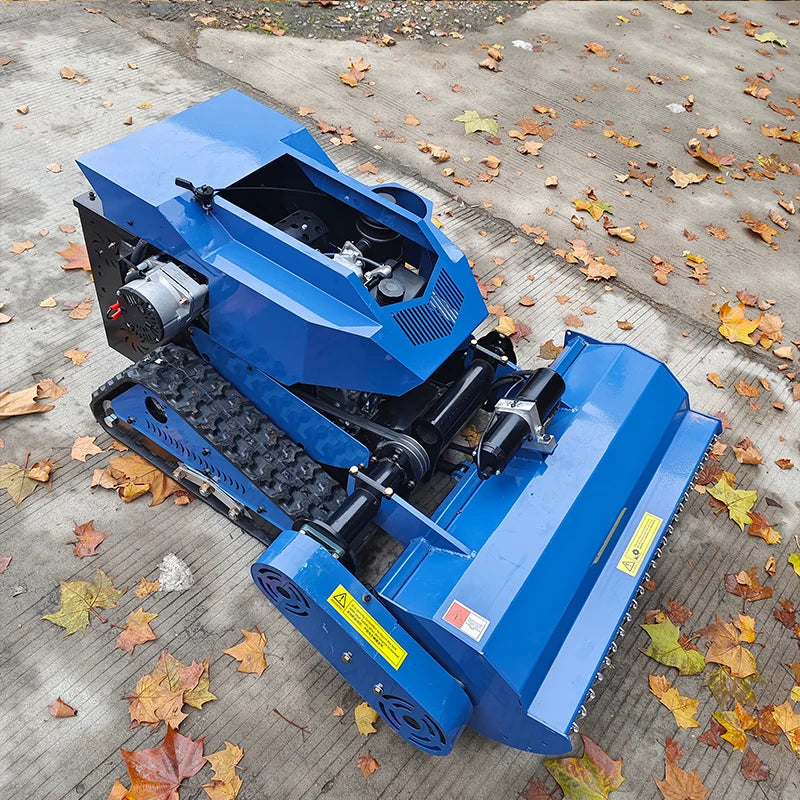

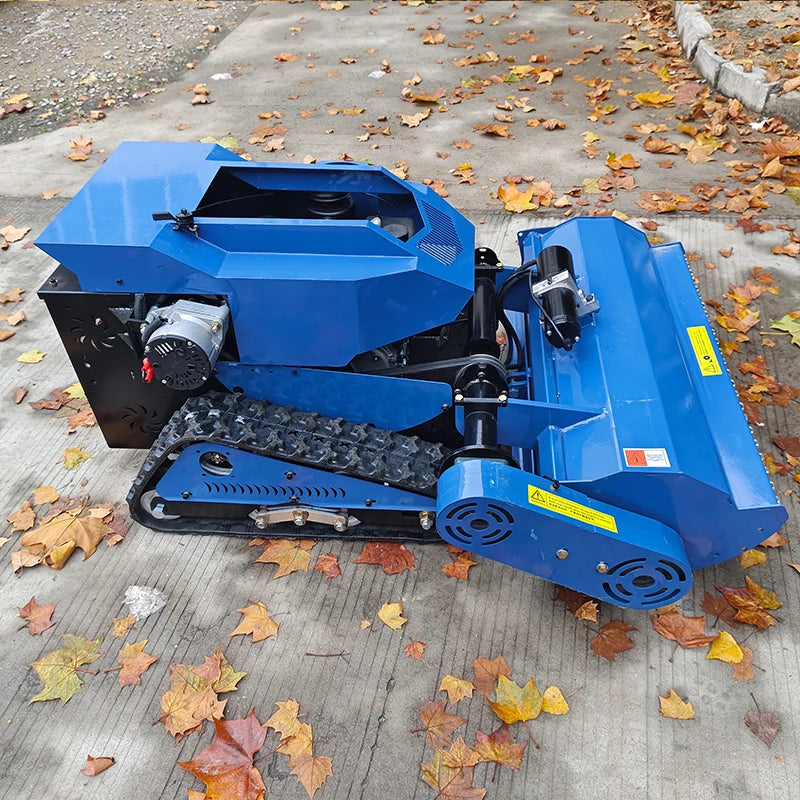

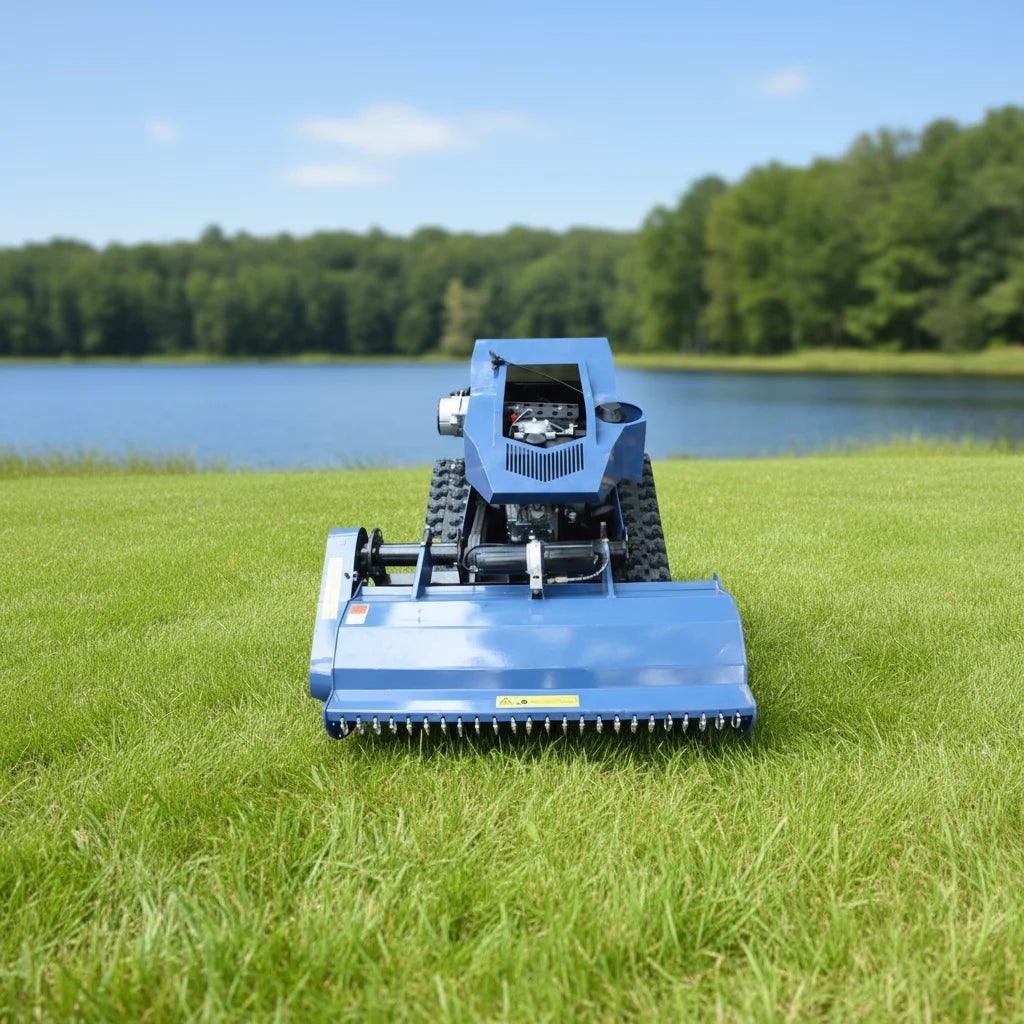

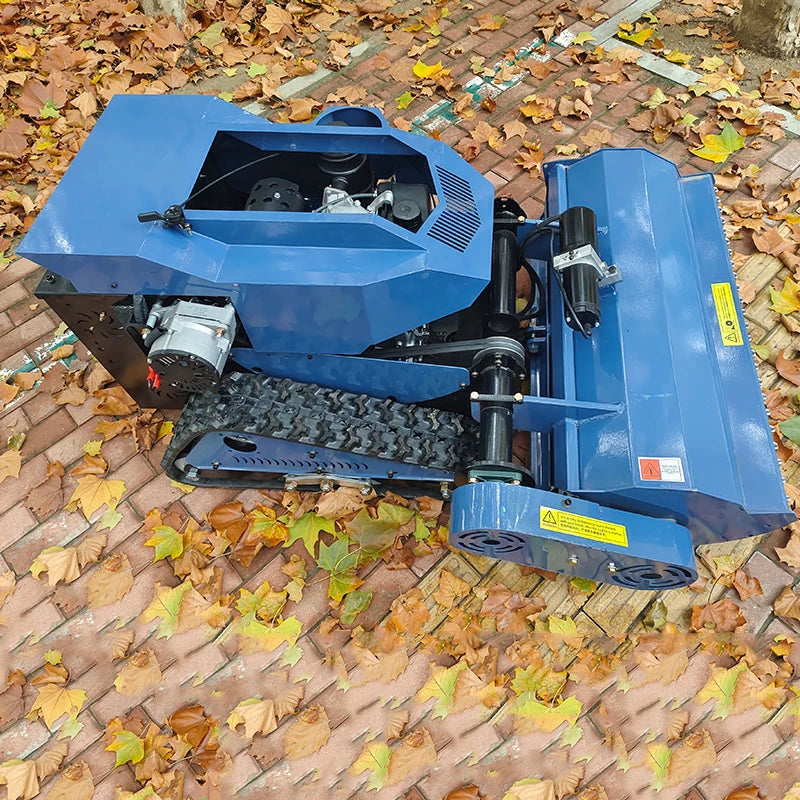

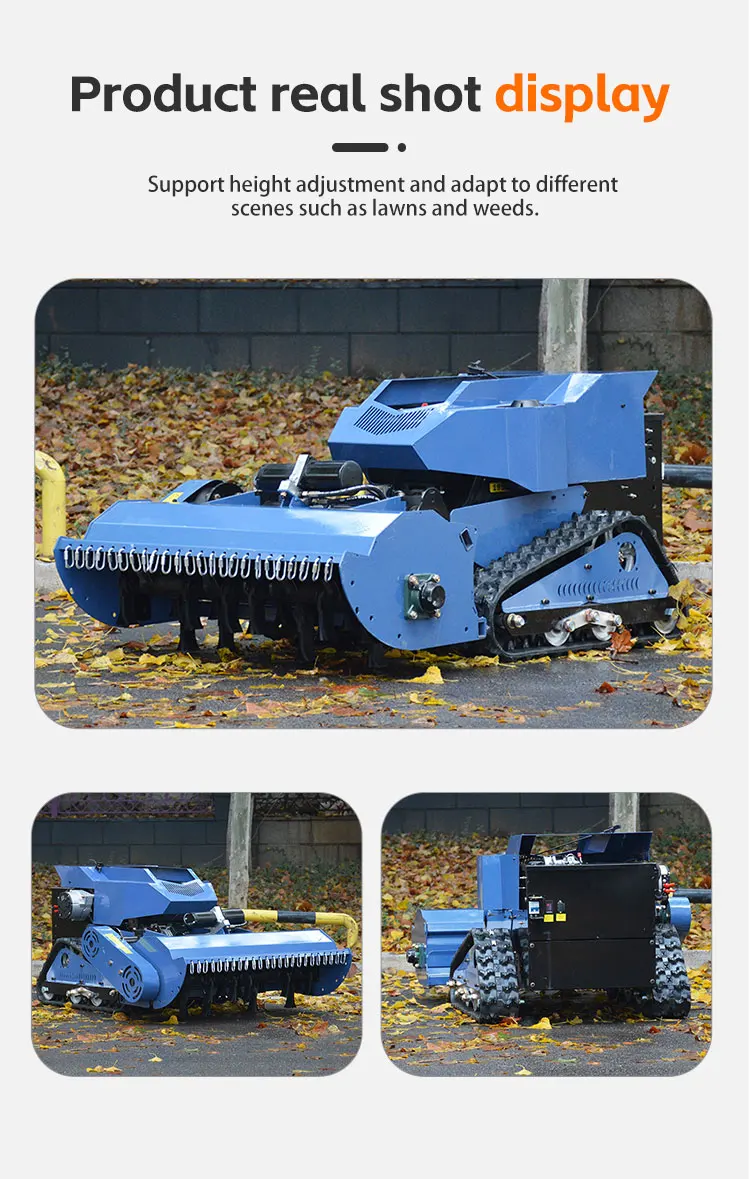

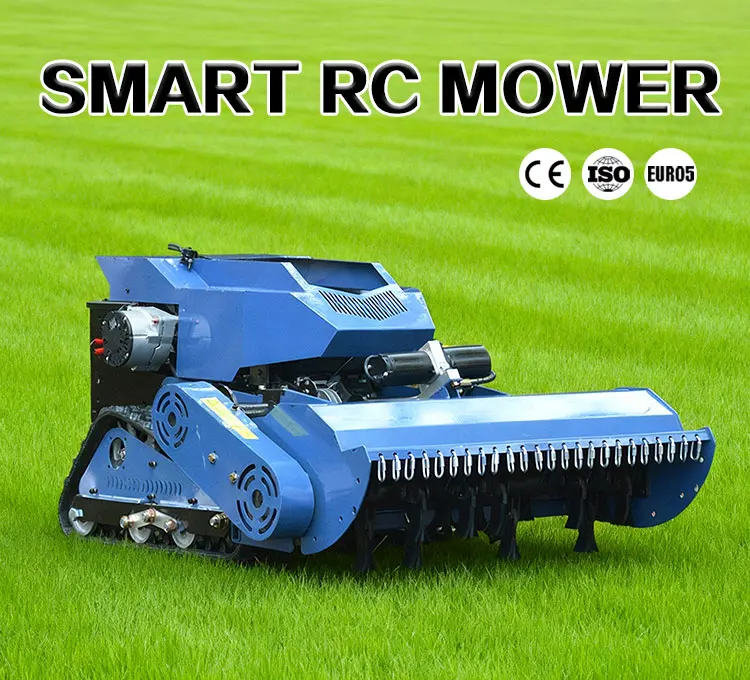

YBZ-03 RC Lawn Mower

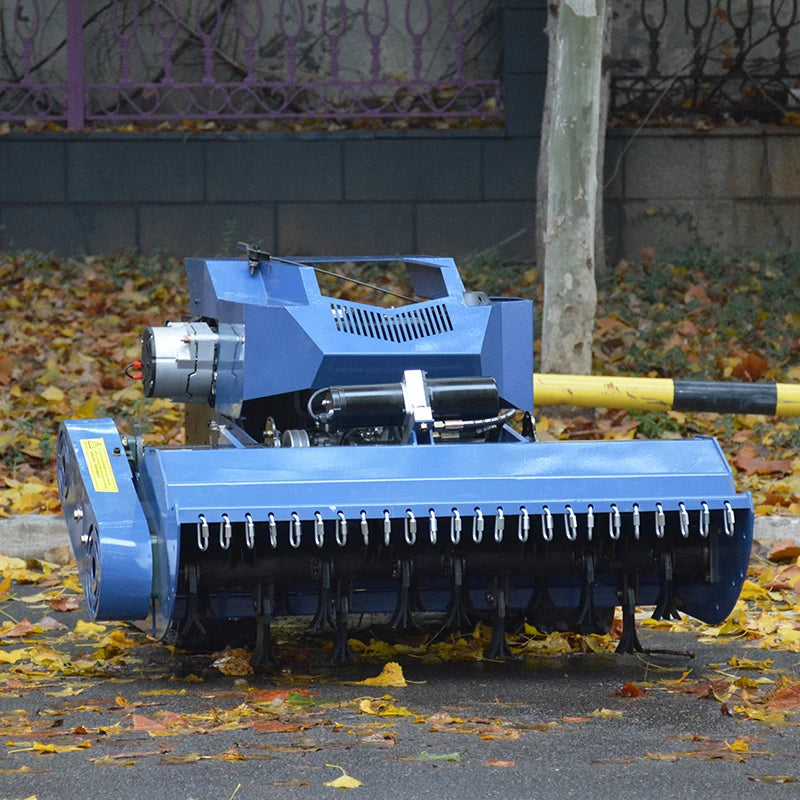

The YBZ-03 RC Lawn Mower is a robust remote-controlled crawler mower designed for demanding vegetation management, large properties and uneven terrain.

With its wide front cutting system, gasoline-powered 4-stroke engine, electric crawler drive and long-distance remote control, the YBZ-03 provides a practical solution for areas where conventional lawn mowers may be difficult or inefficient to operate.

Available with 500mm, 800mm and 1000mm mowing-width configurations, the machine can be selected according to the size of the property and the required cutting capacity.

Multiple Mowing Width Options

The YBZ-03 is offered with three mowing-width options:

• 500mm
• 800mm
• 1000mm

The specification shown features an 800mm cutting width, providing a good balance between cutting productivity and manoeuvrability.

The wider configurations allow customers maintaining larger areas to cover more ground with each pass.

Gasoline-Powered 4-Stroke Performance

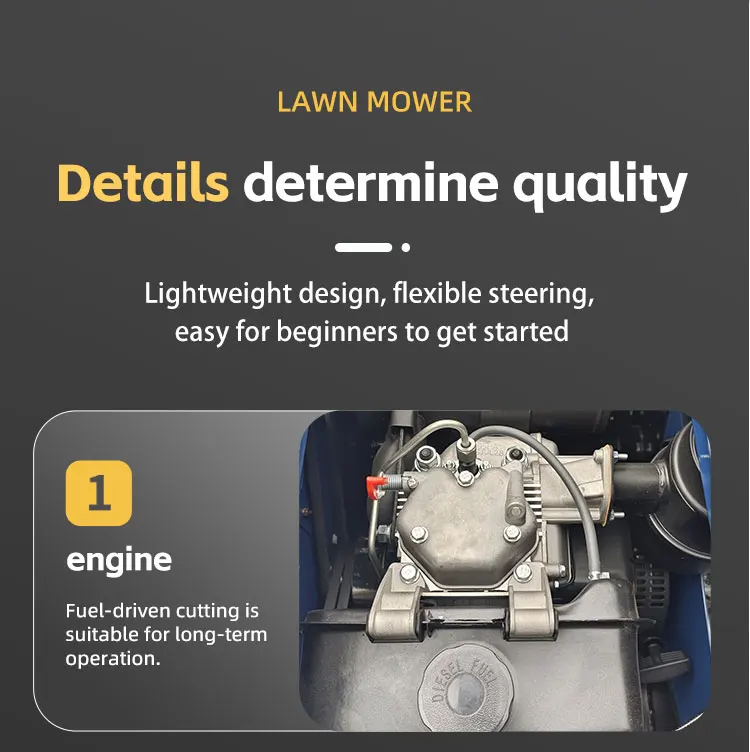

The YBZ-03 uses a 4-stroke gasoline engine, providing dependable power for continuous mowing and vegetation-management work.

Unlike a fully battery-powered mower, the gasoline engine can simply be refuelled when required, making the machine suitable for longer working periods and larger mowing projects.

The mower is equipped with a 5.5-litre fuel tank and convenient electric starting.

Dual 750W Electric Drive Motors

The crawler travel system is powered by two 750W electric motors, providing controlled movement of the mower while the gasoline engine powers the main mowing system.

This configuration combines gasoline cutting performance with responsive electrically controlled travel.

Remote Control Up to 500 Metres

The YBZ-03 has a manufacturer-specified remote-control range of up to 500 metres under suitable operating conditions.

Remote operation allows the user to control the mower without walking immediately behind the machine, making it particularly practical for larger properties, uneven ground and difficult-to-access mowing areas.

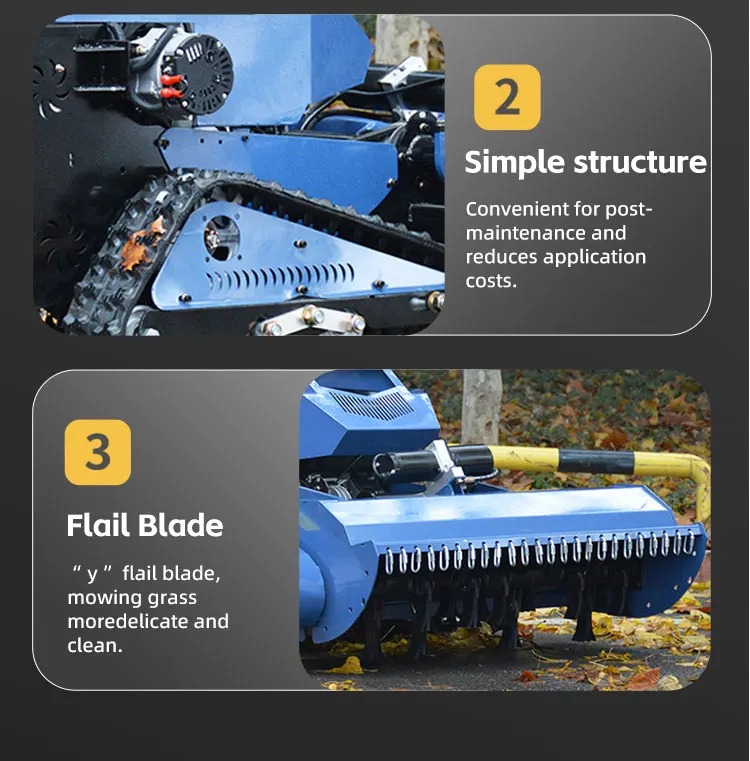

Heavy-Duty Crawler Drive

The YBZ-03 uses an electric crawler-type travel system with approximately 150mm-wide crawler tracks.

The tracked configuration provides a broad contact area with the ground, helping the machine maintain traction and stability when travelling over grass, uneven surfaces and challenging terrain.

The manufacturer specifies a maximum operating slope of less than 30°.

Actual operating capability will depend on ground conditions, moisture, vegetation, direction of travel and other environmental factors.

Adjustable Travel Speed

Travel speed can be controlled from approximately 0–3 km/h.

This allows the operator to reduce the mower's speed when cutting heavier vegetation and increase its travel speed when working in easier conditions.

Heavy and Stable Construction

With a bare machine weight of approximately 362kg, the YBZ-03 has a substantial tracked platform designed for demanding mowing work.

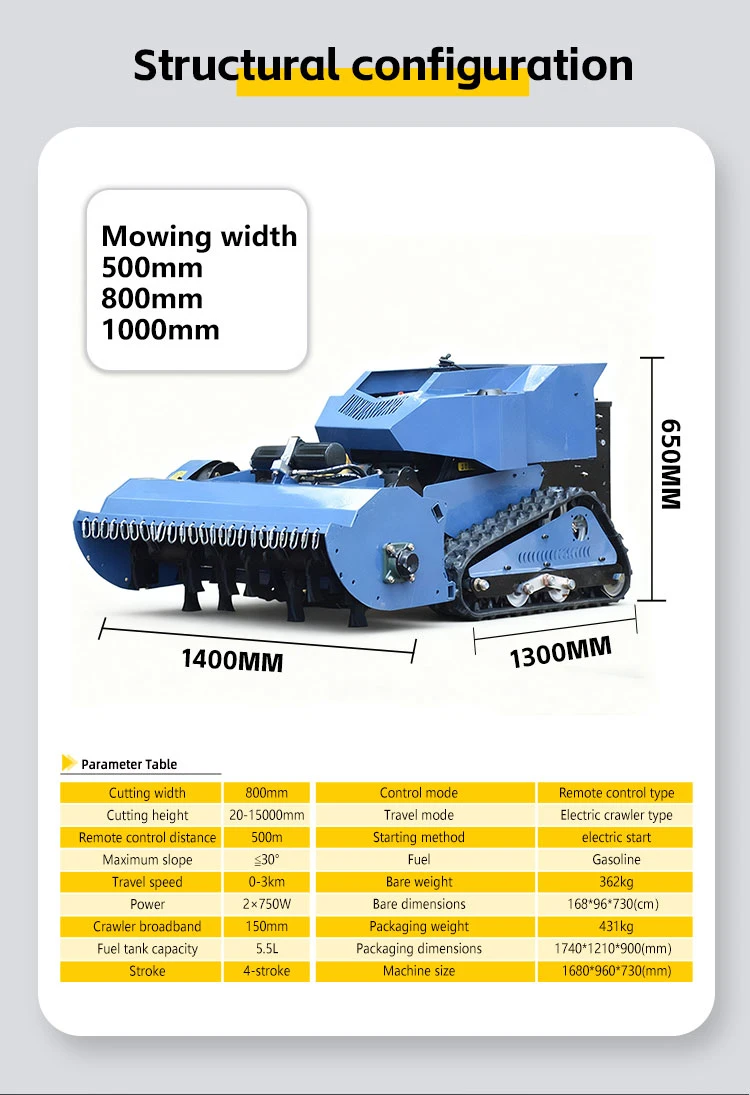

The manufacturer's parameter table lists the machine size as approximately:

1680 × 960 × 730mm

The complete packaged machine weighs approximately 431kg and is transported in protective packaging measuring approximately:

1740 × 1210 × 900mm

Key Specifications

• Product Name: YBZ-03 RC Lawn Mower
• Available Mowing Widths: 500mm / 800mm / 1000mm
• Configuration Shown: 800mm
• Remote-Control Distance: Up to 500m
• Maximum Stated Slope: Less than 30°
• Travel Speed: 0–3km/h
• Drive Power: 2 × 750W
• Travel System: Electric crawler type
• Crawler Width: Approximately 150mm
• Fuel: Gasoline
• Engine Type: 4-stroke
• Fuel Tank Capacity: 5.5L
• Starting Method: Electric start
• Bare Weight: Approximately 362kg
• Machine Size: Approximately 1680 × 960 × 730mm
• Packaged Weight: Approximately 431kg
• Packaging Dimensions: Approximately 1740 × 1210 × 900mm

Suitable Applications

The YBZ-03 is designed for a wide range of property and vegetation-maintenance applications, including:

• Farms and agricultural properties
• Orchards
• Estates
• Large private properties
• Commercial grounds
• Industrial sites
• Uneven land
• Overgrown grass
• Weeds and vegetation
• General land maintenance

Built for Serious Vegetation Management

With its heavy-duty crawler chassis, multiple cutting-width options, gasoline-powered cutting system, dual 750W travel motors and remote operation, the YBZ-03 offers a capable solution for customers who require more than a conventional residential lawn mower.

Its combination of substantial construction, tracked mobility and remote control makes it particularly well suited to larger and more demanding mowing environments.
