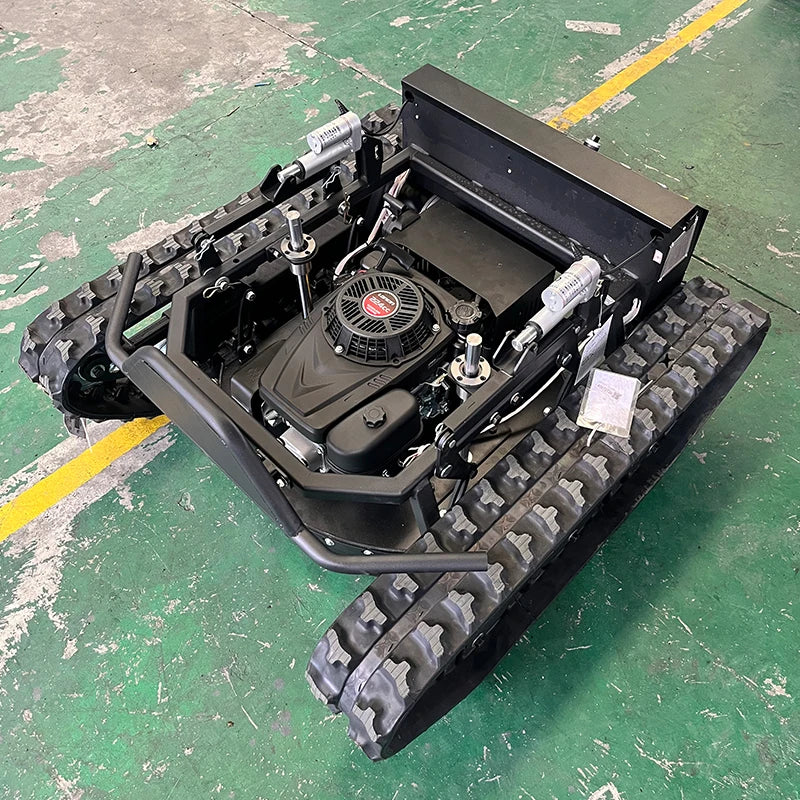

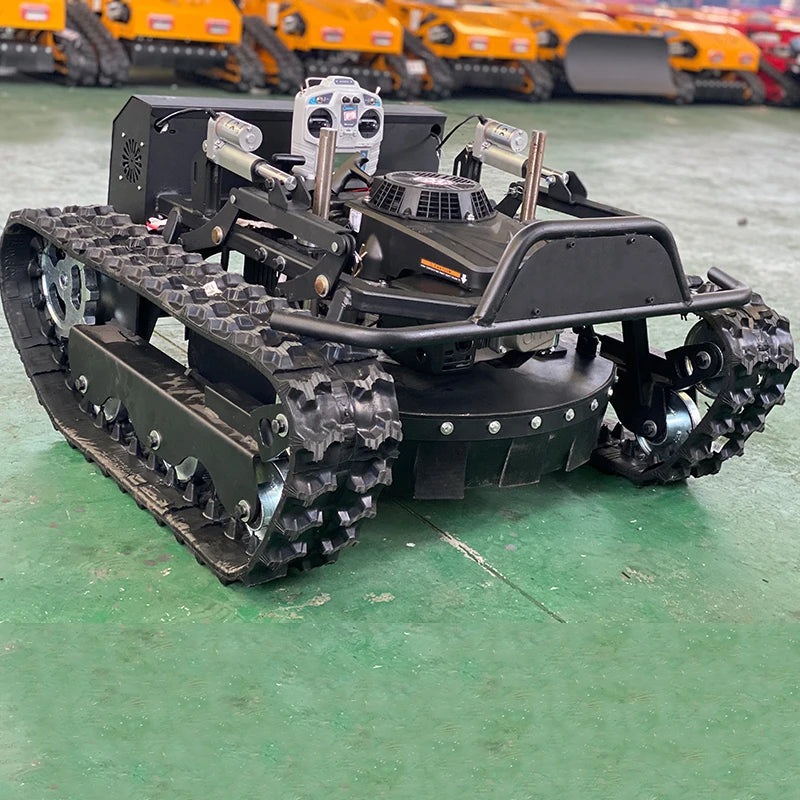

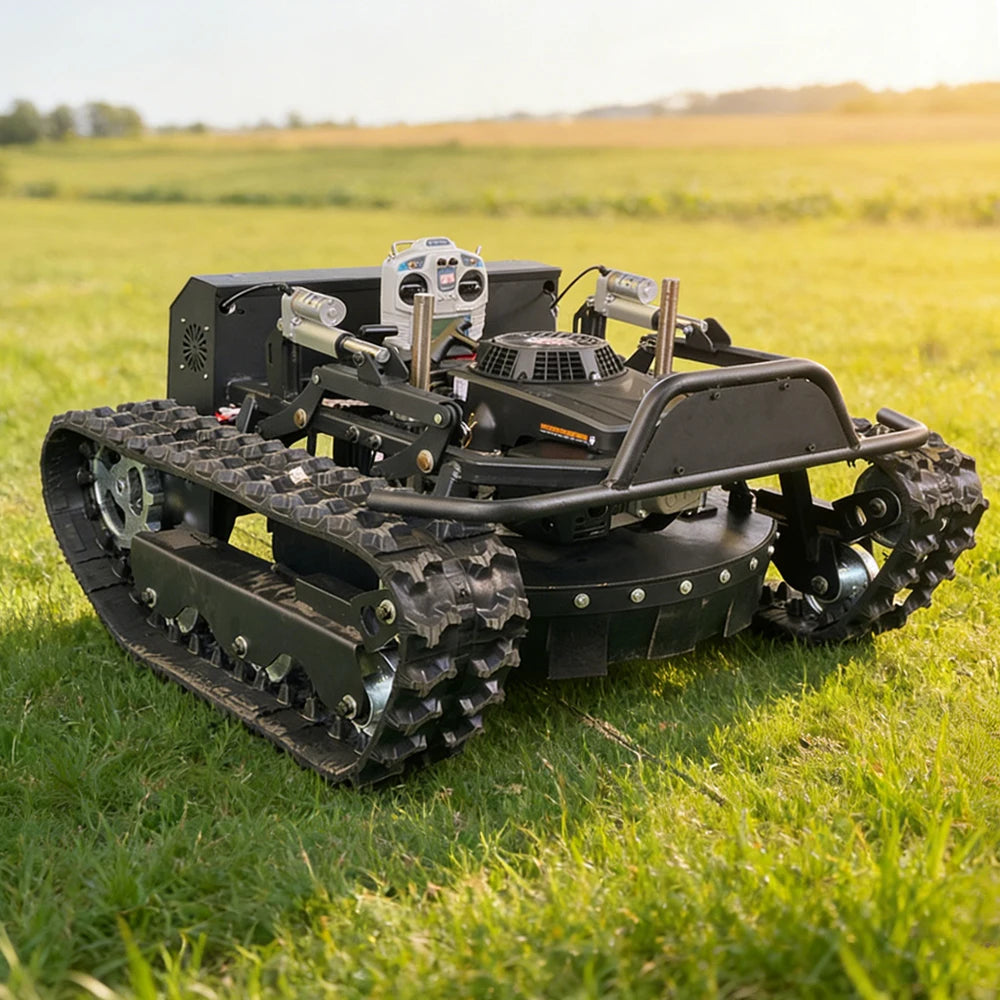

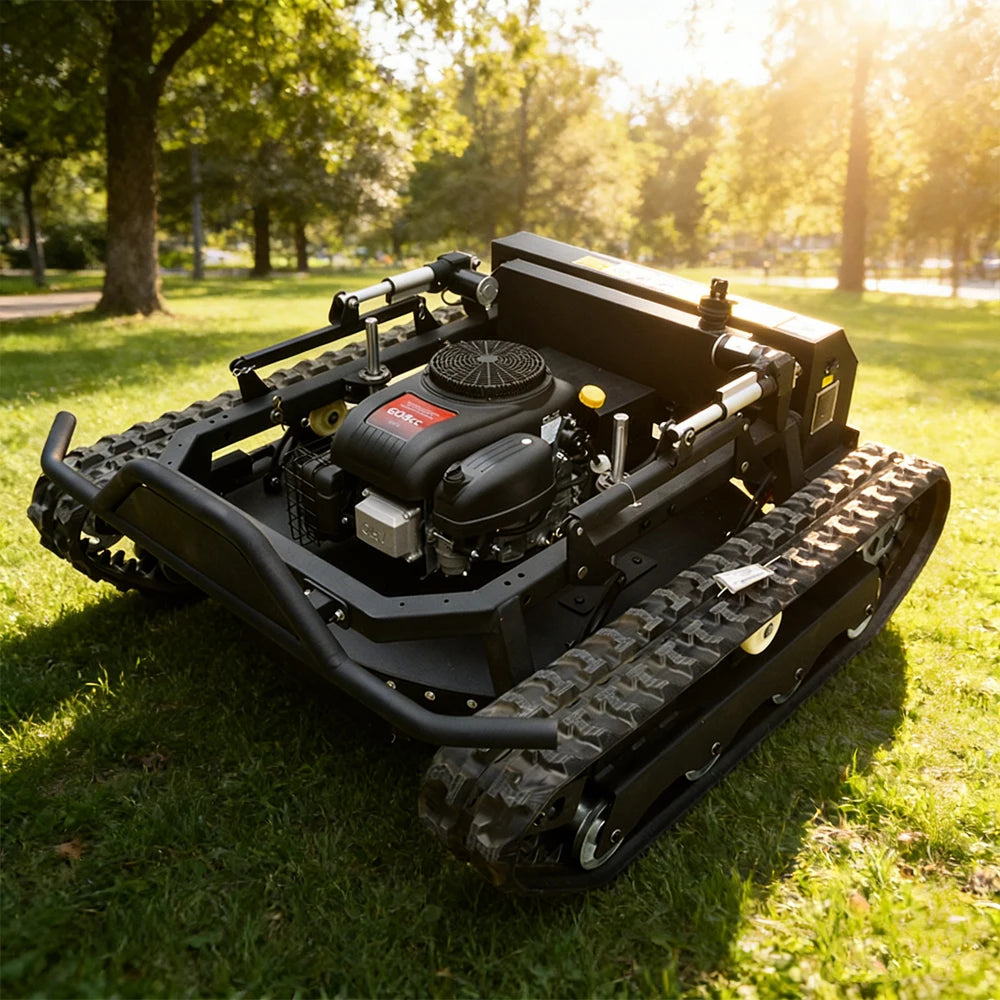

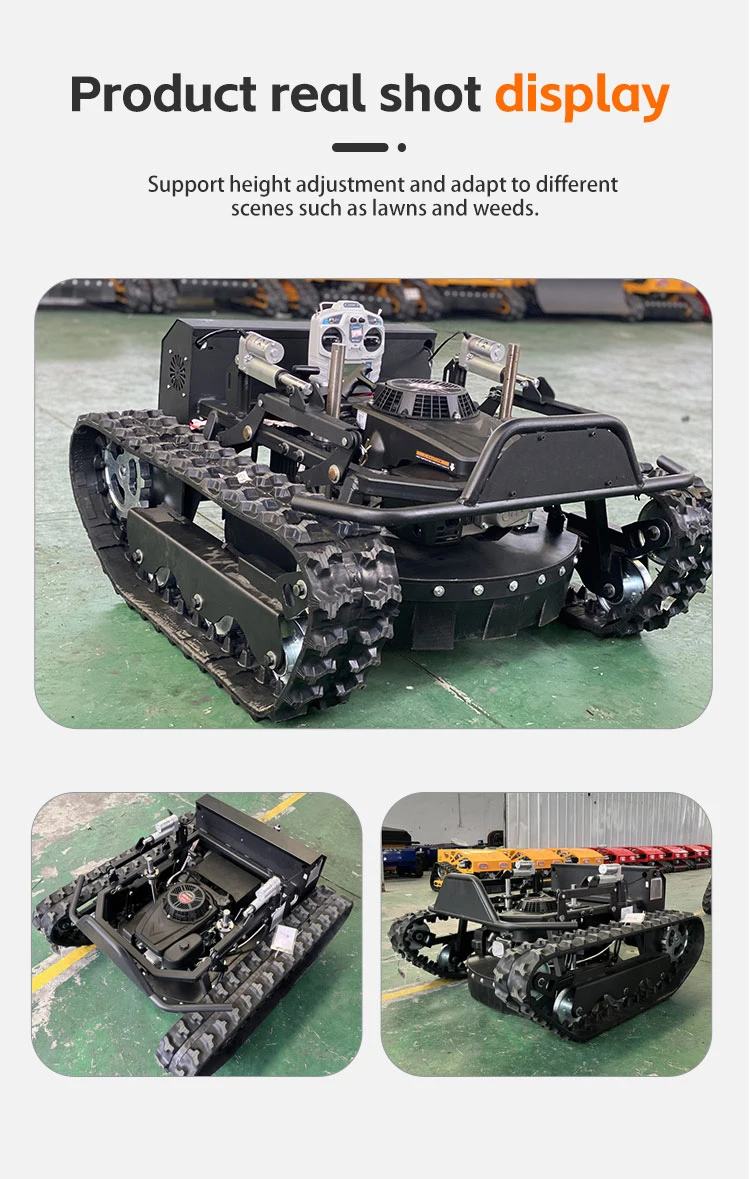

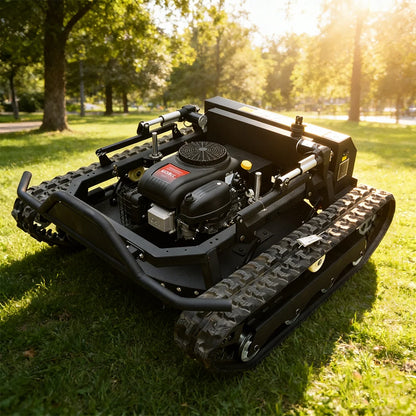

TYW-20 RC LAWN MOWER

The TYW-20 RC Lawn Mower is a powerful tracked remote-controlled lawn mower designed for demanding grass cutting, vegetation management and large-area property maintenance.

Built around a low-profile crawler chassis, the TYW-20 combines a 22HP or 27HP gasoline engine, electric crawler drive and remote operation to provide strong cutting performance while allowing the operator to control the machine from a safe and convenient distance.

With available mowing widths of 550mm, 900mm and 1300mm, the TYW-20 can be configured for different workloads, from general property maintenance to wider commercial and agricultural mowing applications.

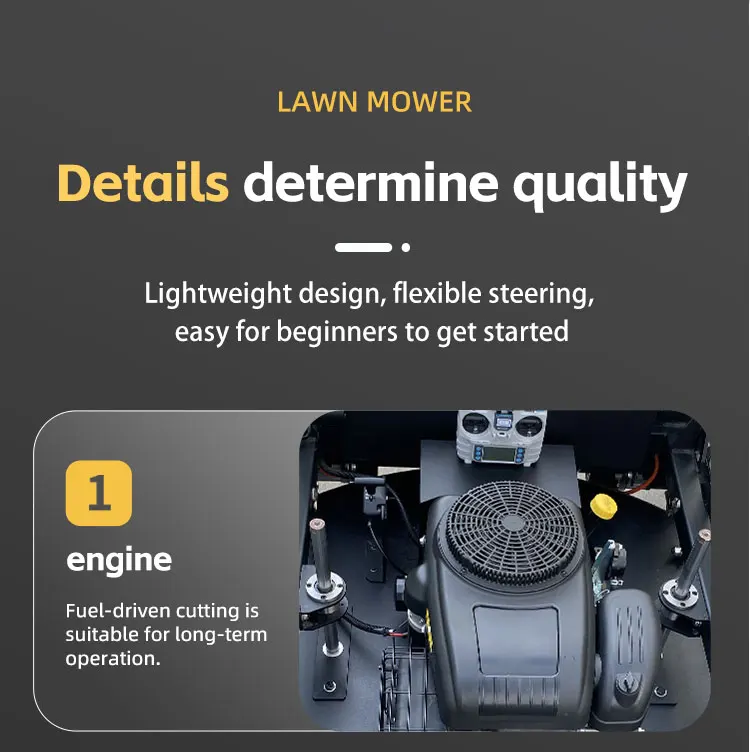

22HP or 27HP Gasoline Engine Options

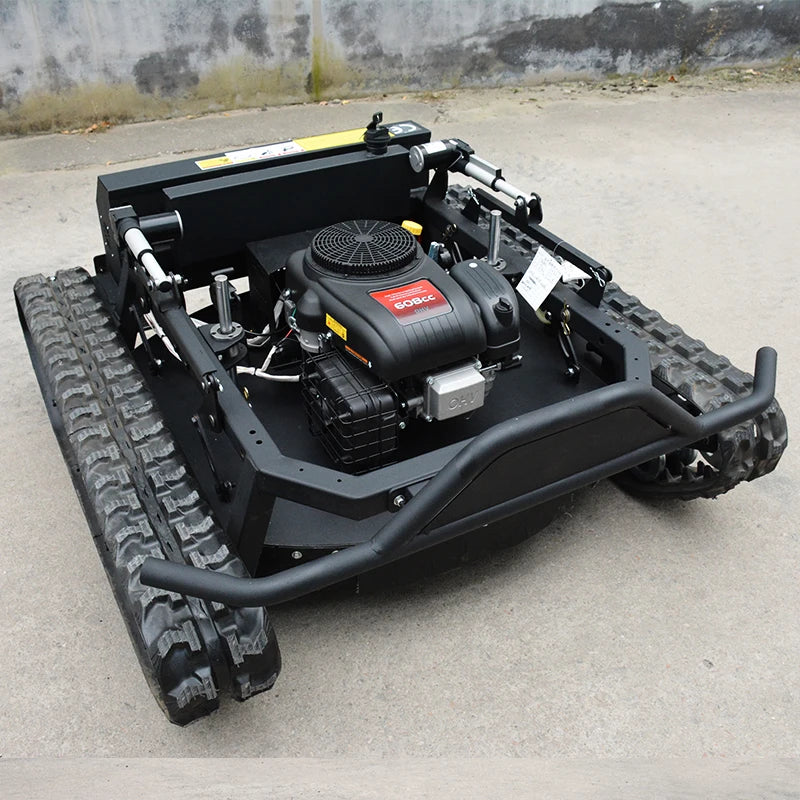

The TYW-20 is available with powerful 22HP and 27HP gasoline engine configurations, with displacement options shown as 608cc and 764cc.

The 4-stroke gasoline engine provides the cutting power required for demanding mowing applications while the crawler travel system is electrically driven.

This combination delivers the strength and endurance of a combustion engine together with the responsive movement and precise control of an electric tracked drive system.

Multiple Cutting Width Options

The TYW-20 is available with different mowing-width configurations:

• 550mm
• 900mm
• 1300mm

The specification shown uses a 900mm cutting width, offering an effective balance between manoeuvrability and wide-area mowing productivity.

Customers can select a configuration according to property size, vegetation and intended application.

Wide 0–260mm Cutting Height Range

The mower offers a cutting-height range of approximately 0–260mm, providing considerable adjustment for different mowing conditions.

This makes the TYW-20 suitable for everything from lower grass maintenance to taller and more demanding vegetation.

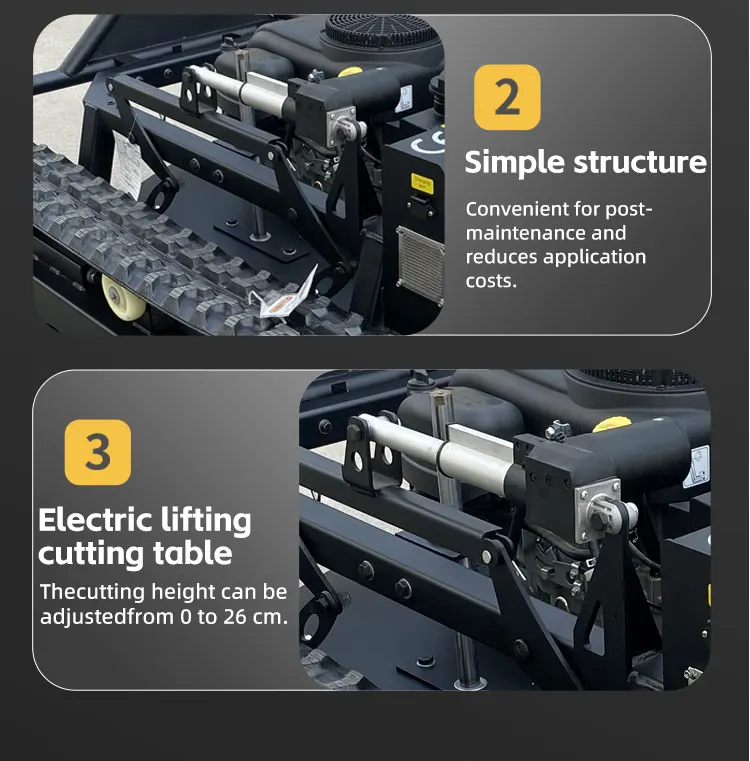

Electric Cutting Height Adjustment

The machine features a lifting electric cylinder, allowing the cutting assembly to be raised or lowered electrically.

This makes height adjustment more convenient and allows the machine to be adapted to changing terrain and vegetation conditions without relying entirely on manual adjustment.

Built for Steep Terrain

One of the standout specifications of the TYW-20 is its manufacturer-rated maximum slope capability of up to 70°.

Its wide crawler tracks and low-profile body are designed to provide stability and traction on challenging ground where conventional wheeled mowing equipment may be difficult to operate.

Actual operating capability will depend on ground conditions, moisture, vegetation, orientation and other environmental factors. The mower should always be operated within safe conditions and in accordance with the operating instructions.

Steel-Reinforced Crawler System

The TYW-20 uses a heavy-duty steel-wire reinforced crawler track system designed to provide dependable traction and durability.

The tracked layout offers a large contact area with the ground, helping the mower move over:

• Uneven terrain
• Sloping ground
• Soft surfaces
• Grass-covered hills
• Agricultural land
• Rough property areas

The crawler design also helps distribute the machine's weight more evenly than a conventional narrow-wheel configuration.

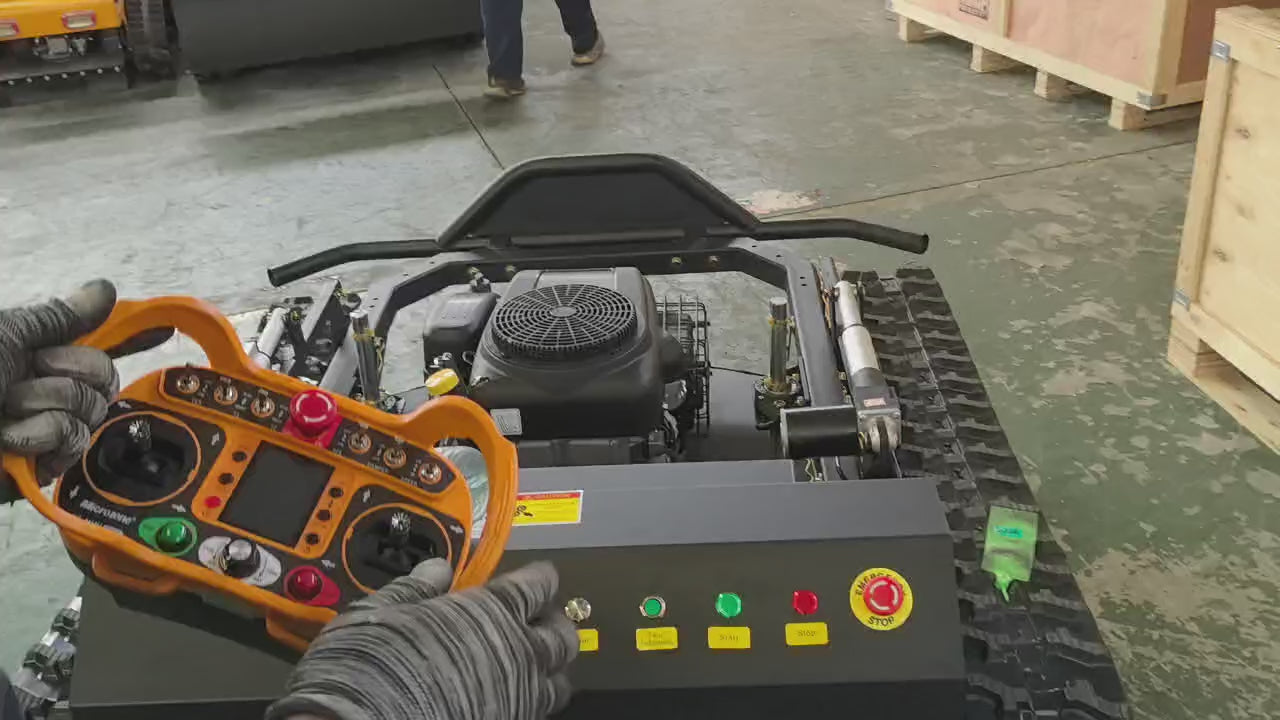

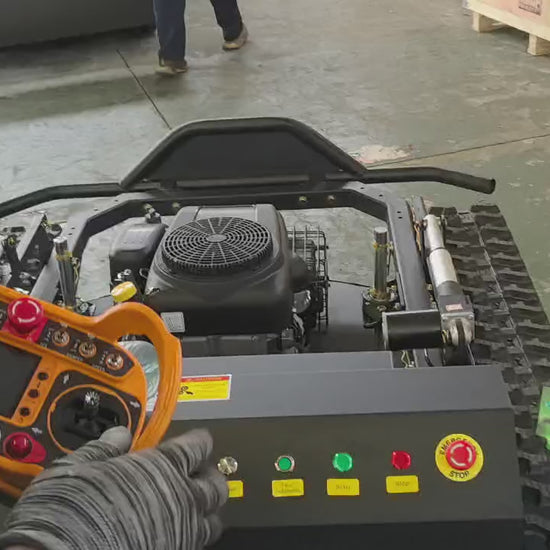

Remote Control Up to 500 Metres

The TYW-20 has a manufacturer-specified remote-control distance of up to 500 metres under suitable operating conditions.

Remote operation allows the user to control the mower's travel and functions without walking directly behind or riding on the machine.

This is particularly useful when mowing slopes, larger open properties and terrain where maintaining distance from the mower is beneficial.

Travel Speeds Up to 5 km/h

With an adjustable travel speed of approximately 0–5 km/h, the operator can adapt the mower's movement to the working environment.

A slower speed can be used for heavier or denser vegetation, while higher travel speeds can improve efficiency when conditions are less demanding.

Electric Crawler Drive

The machine uses an electric crawler-type travel system, while the gasoline engine provides the primary mowing power.

This hybrid operating arrangement combines combustion-engine cutting performance with electrically controlled movement for precise remote manoeuvring.

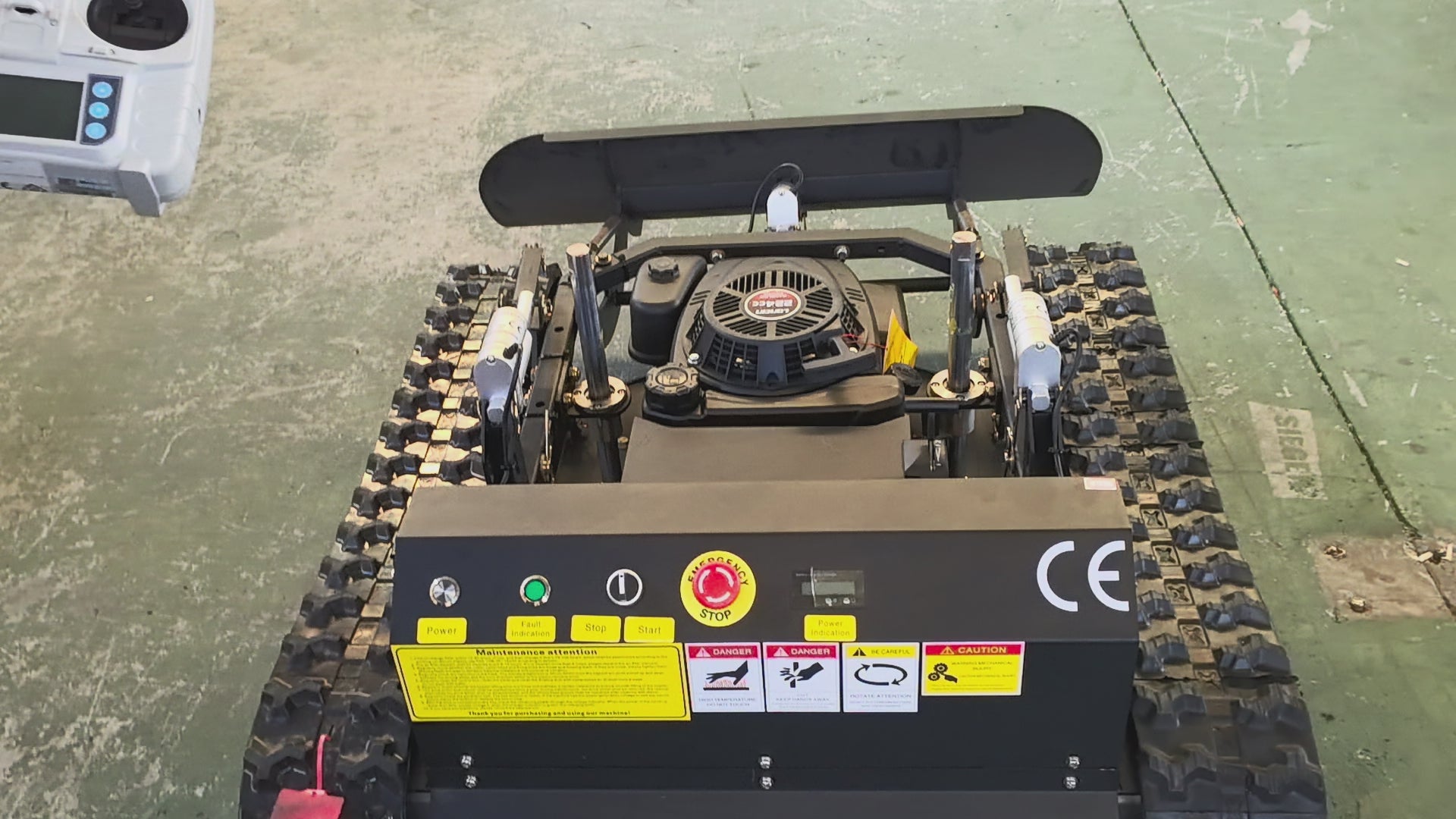

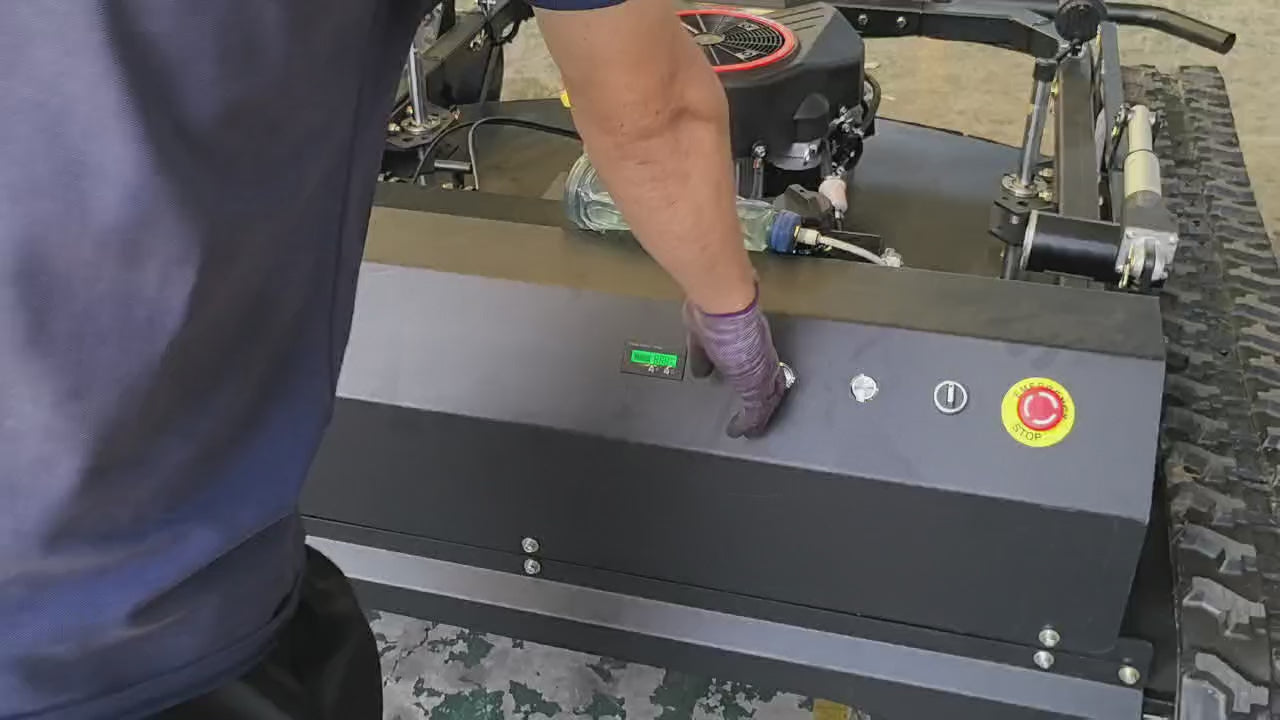

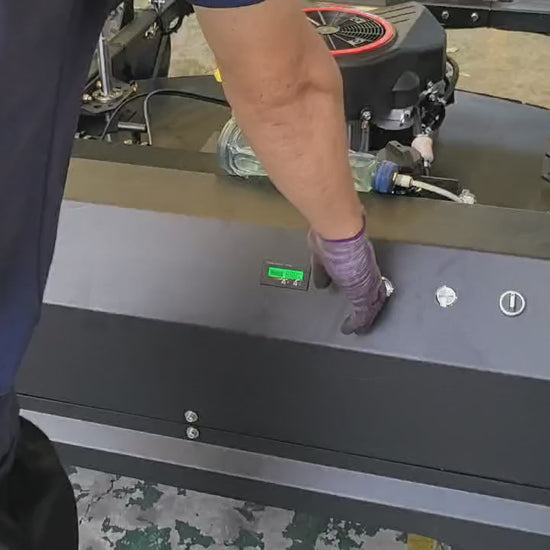

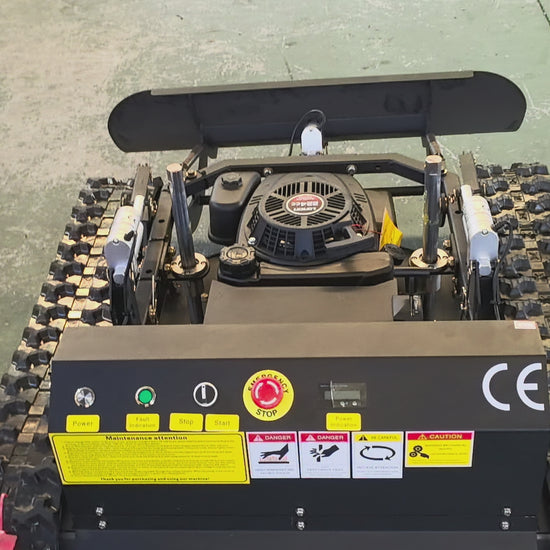

Electric Start

The TYW-20 features electric starting, allowing convenient engine startup without relying solely on a traditional manual starting system.

Integrated LED Lighting

An integrated LED light provides additional visibility around the machine and gives the TYW-20 a practical feature for operating in lower-light working environments.

The operator should always ensure there is adequate visibility and safe operating conditions.

Protective Splash Chain

A protective splash chain is incorporated around the cutting area to help reduce the uncontrolled projection of grass and debris while the cutting system is operating.

As with any mowing equipment, operators and bystanders should maintain an appropriate safety distance while the machine is in use.

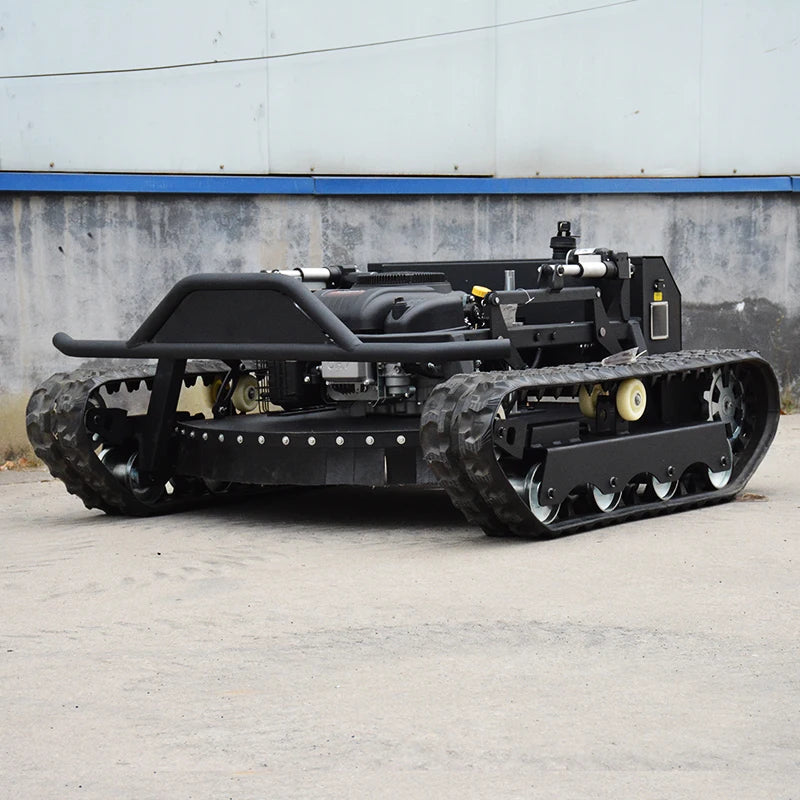

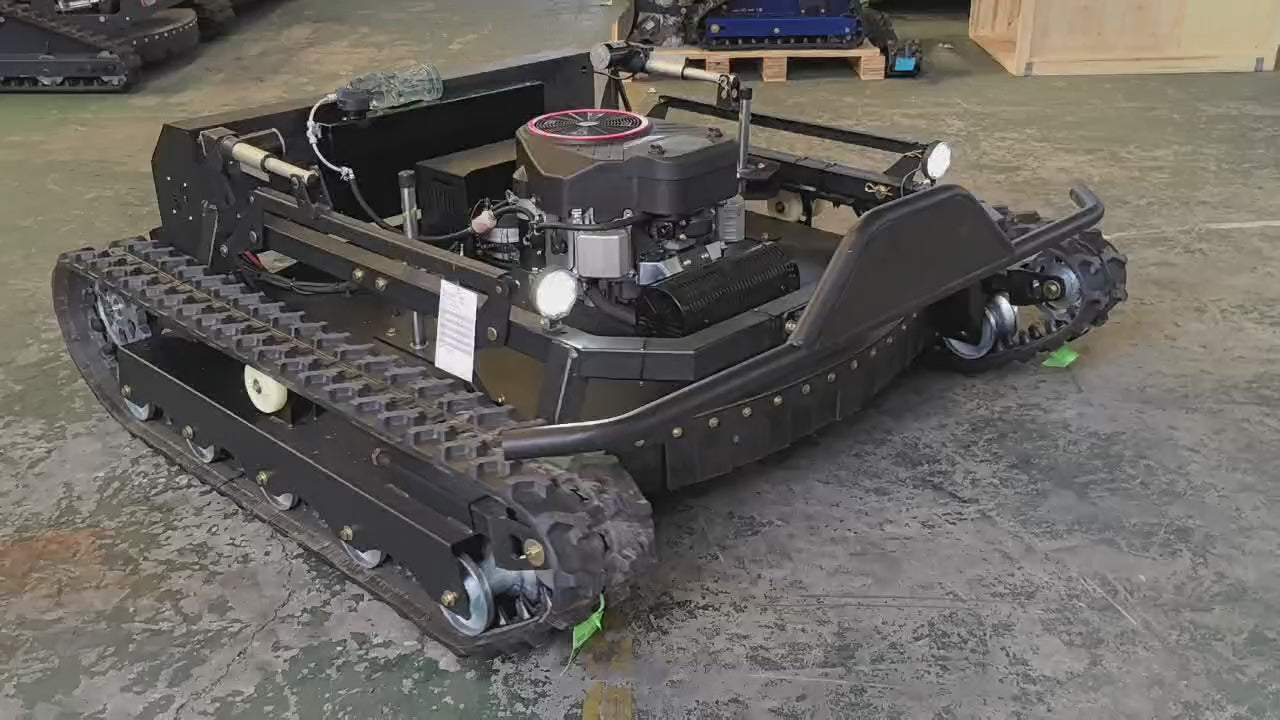

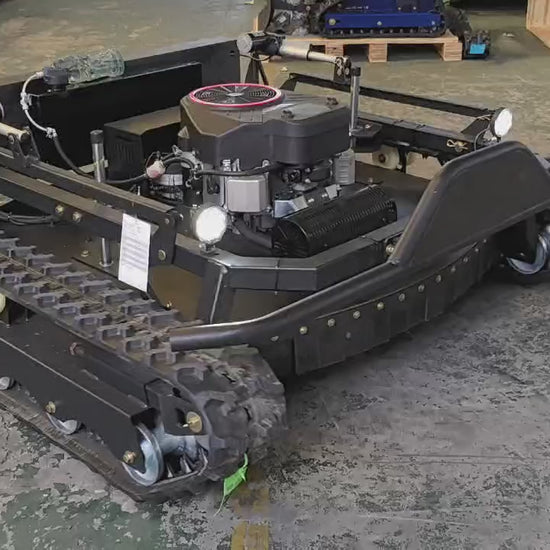

Heavy-Duty Low-Profile Construction

The TYW-20 has a robust chassis designed to remain relatively low to the ground.

Approximate machine dimensions are:

1300 × 1400 × 650mm

The mower has a bare weight of approximately 330kg, creating a substantial and stable platform for demanding mowing work.

For transportation, the machine is securely packaged with approximate dimensions of:

1410 × 1510 × 800mm

The complete packaged weight is approximately 365kg.

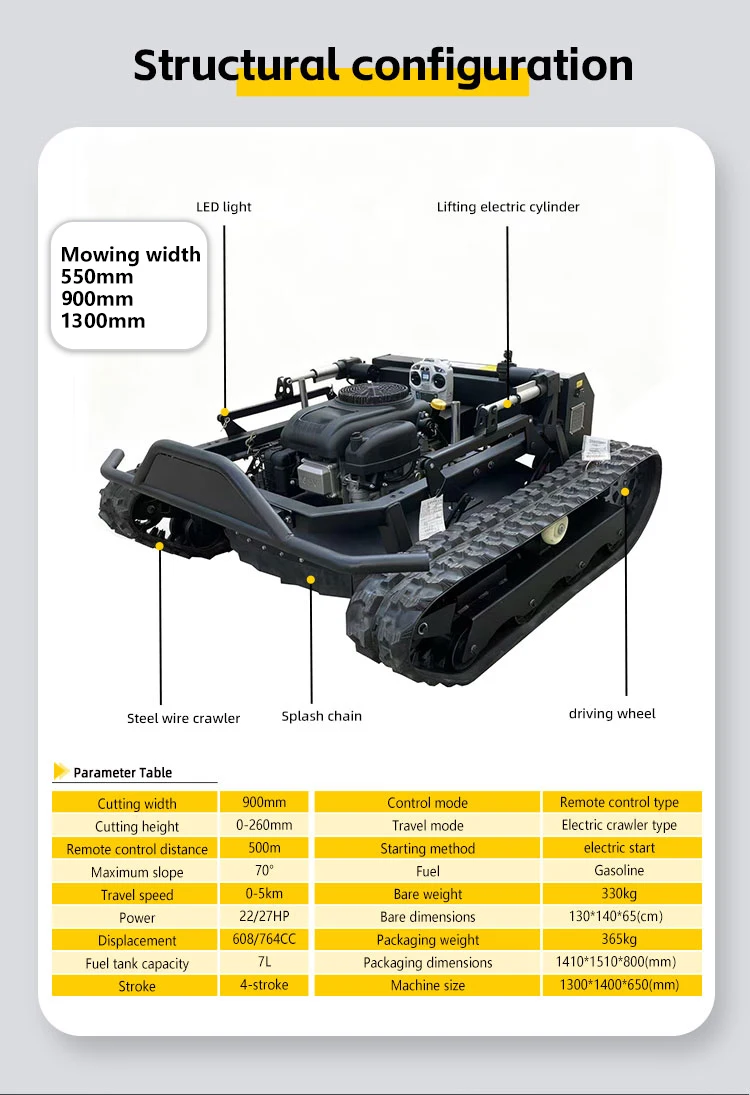

Key Specifications

• Product Name: TYW-20 RC Lawn Mower
• Available Mowing Widths: 550mm / 900mm / 1300mm
• Standard Specification Shown: 900mm
• Cutting Height: 0–260mm
• Engine Power Options: 22HP / 27HP
• Engine Displacement Options: 608cc / 764cc
• Engine Type: 4-stroke
• Fuel: Gasoline
• Fuel Tank Capacity: 7L
• Starting Method: Electric start
• Remote-Control Distance: Up to 500m
• Maximum Manufacturer-Rated Slope: Up to 70°
• Travel Speed: 0–5km/h
• Travel System: Electric crawler drive
• Crawler Type: Steel-wire reinforced crawler
• Cutting Height Adjustment: Electric lifting cylinder
• Lighting: LED light
• Bare Weight: Approximately 330kg
• Machine Dimensions: 1300 × 1400 × 650mm
• Packaged Weight: Approximately 365kg
• Packaging Dimensions: 1410 × 1510 × 800mm

Suitable for a Wide Range of Applications

The TYW-20 is designed for customers who need a more capable solution for maintaining difficult or extensive land.

Potential applications include:

• Farms
• Orchards
• Estates
• Large residential properties
• Commercial grounds
• Industrial sites
• Solar farms
• Roadside vegetation
• Embankments
• Sloped properties
• Uneven terrain
• Tall grass and weeds
• General vegetation management

Power, Traction and Remote Control in One Machine

With its 22HP or 27HP gasoline engine options, multiple cutting widths, tracked electric drive, remote operation and heavy-duty construction, the TYW-20 offers a versatile solution for demanding mowing applications.

Its low-profile crawler design, electrically adjustable cutting system and wide choice of mowing widths make it particularly attractive for customers looking for a serious remote-controlled mower for slopes, large areas and challenging terrain.
