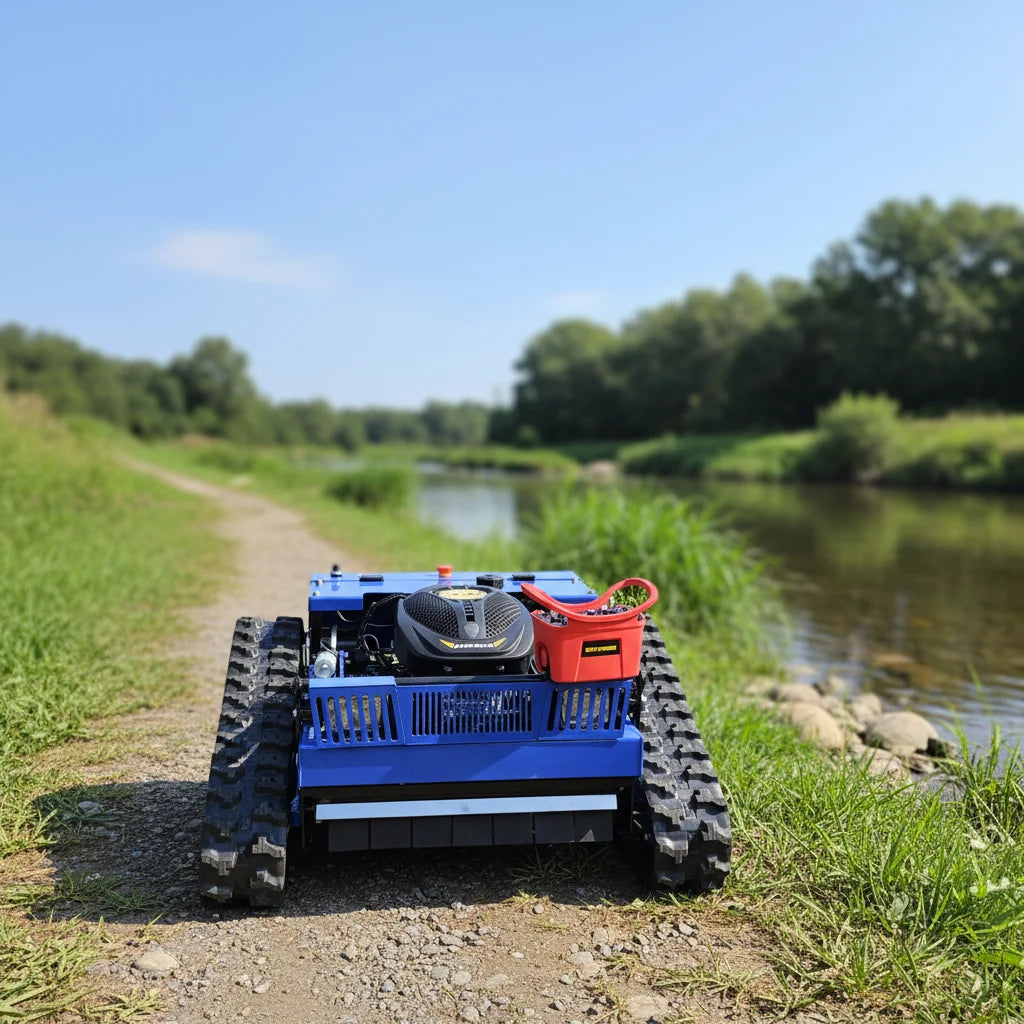

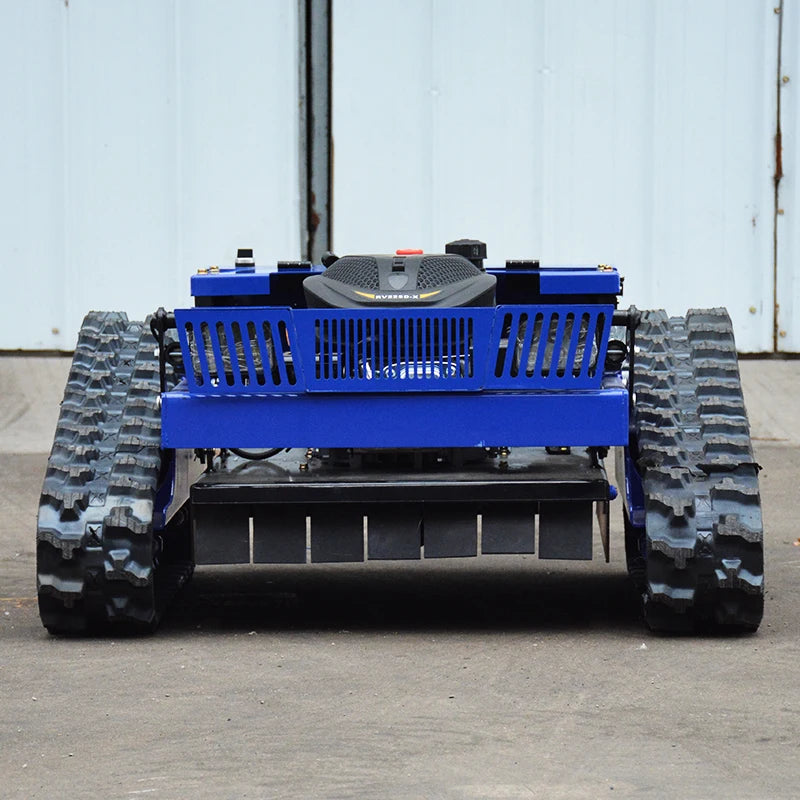

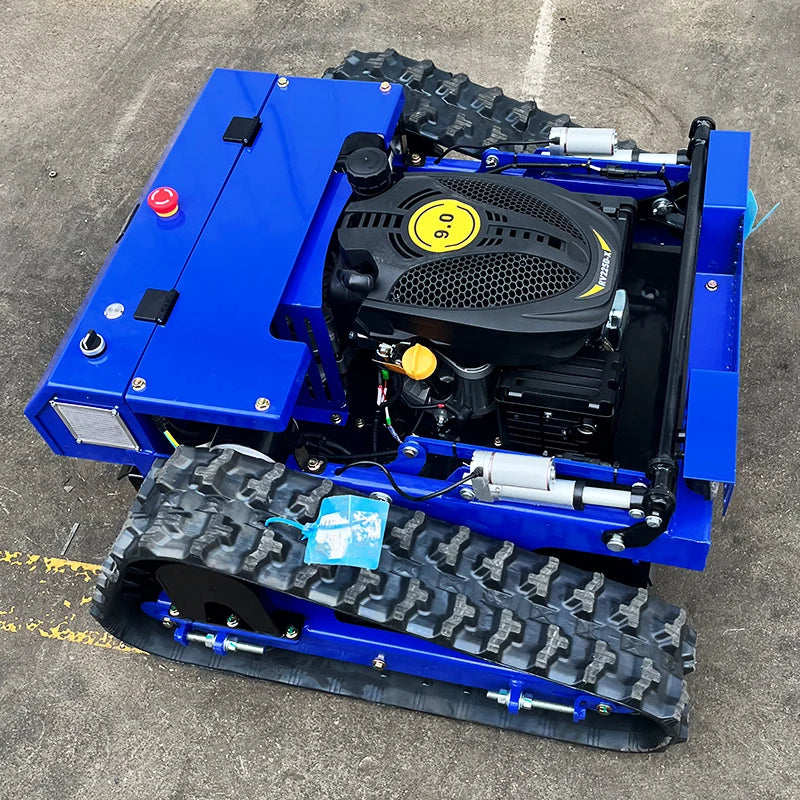

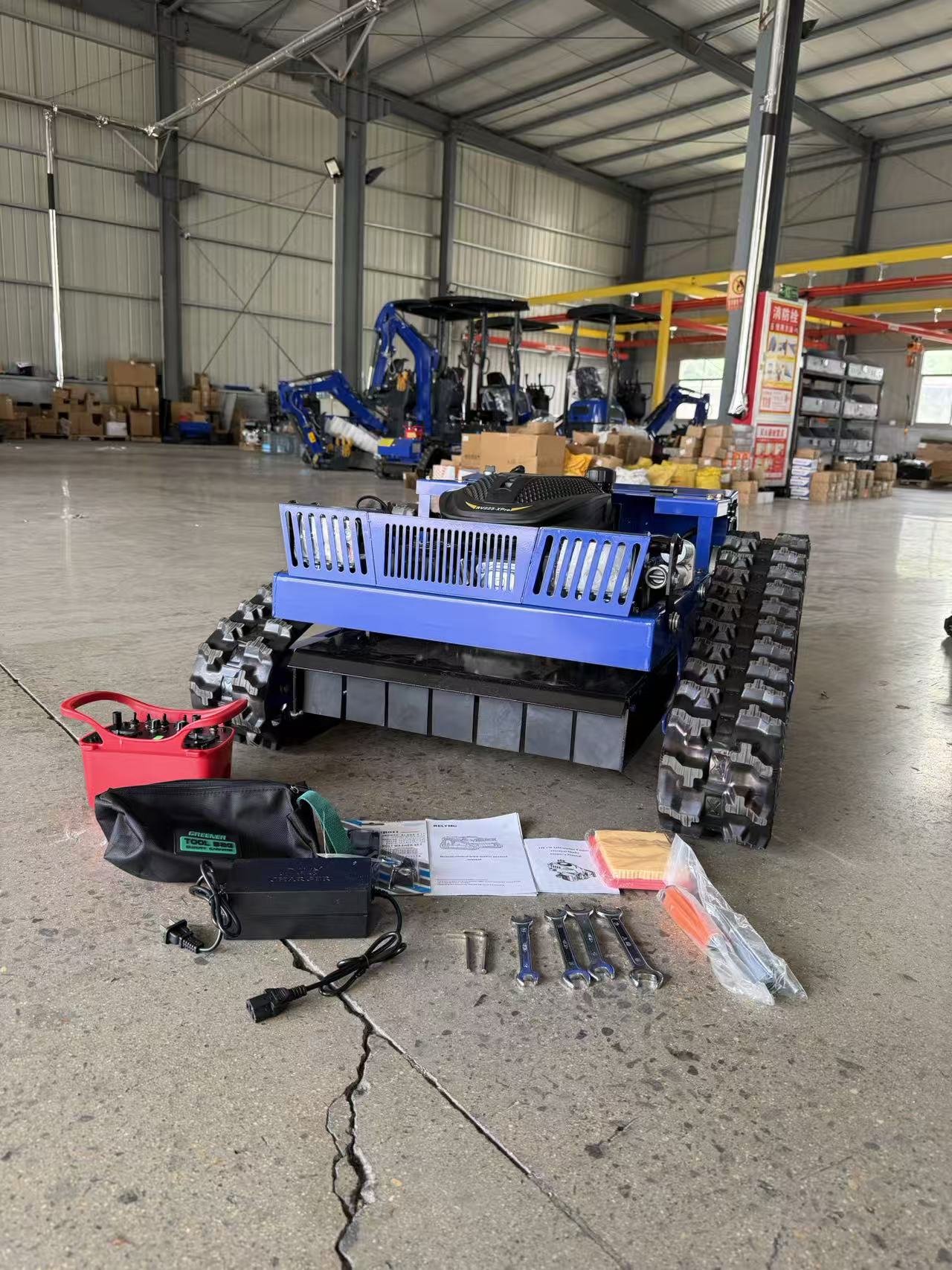

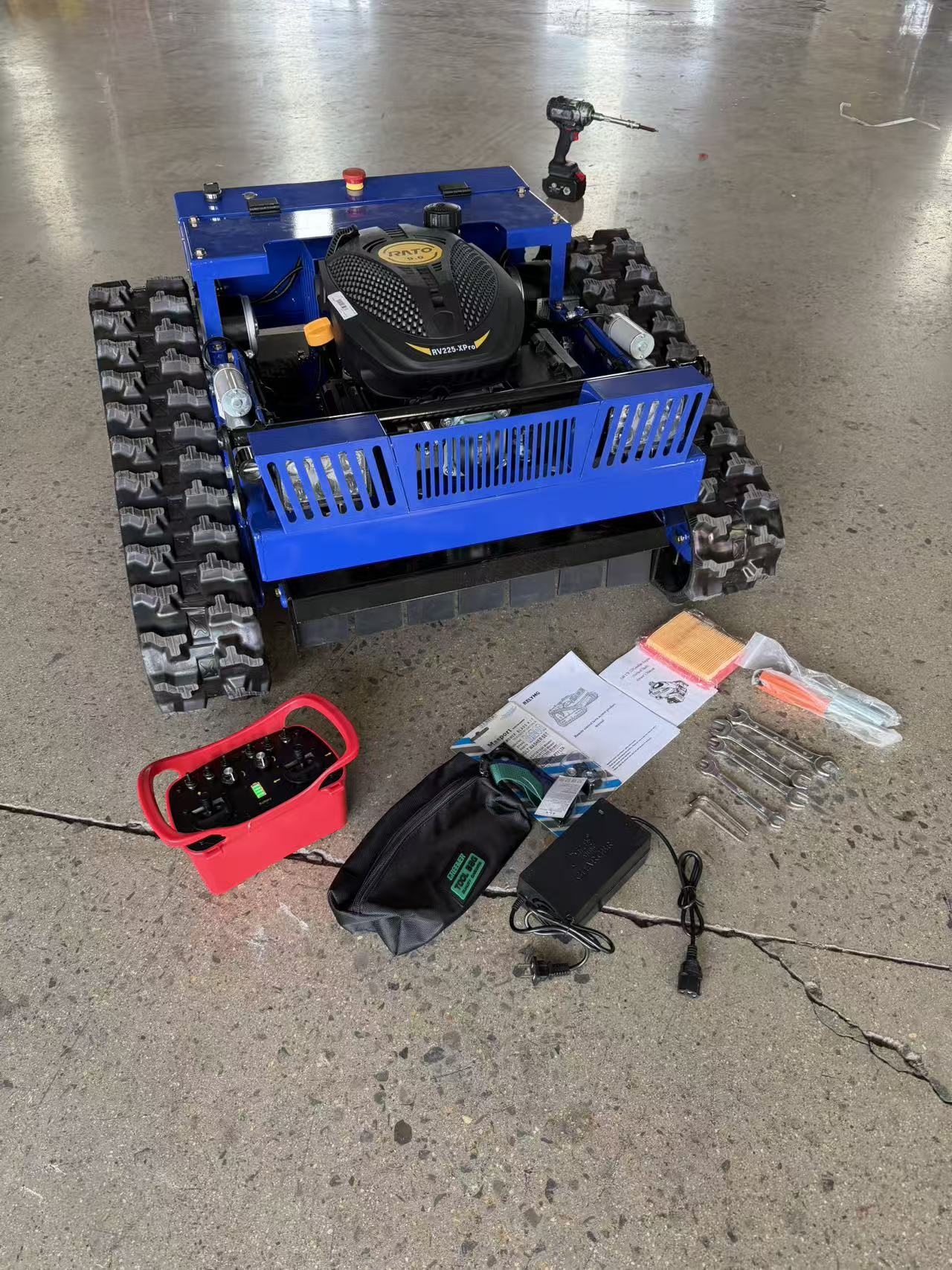

RLM-01 RC Lawn Mower

The RLM-01 RC Lawn Mower is a compact tracked remote-controlled mower designed for convenient grass cutting across residential properties, farms, orchards, estates and uneven terrain.

Powered by a 7.5HP, 225cc gasoline engine, the RLM-01 combines dependable cutting performance with an electrically driven crawler system and remote-control operation. Its compact 550mm cutting width makes it particularly suitable for customers who want a manoeuvrable RC mower without moving up to a larger commercial-size machine.

7.5HP Gasoline Engine

The RLM-01 is equipped with a 7.5HP, 225cc gasoline engine, providing reliable power for everyday mowing and property-maintenance applications.

Gasoline power allows the mower to continue working with a simple refuel rather than relying entirely on a large rechargeable propulsion battery.

A generous 7-litre fuel tank supports longer mowing sessions between refuelling stops.

550mm Cutting Width

The 550mm cutting deck provides a practical balance between mowing efficiency and manoeuvrability.

Its compact cutting width makes the RLM-01 particularly useful in areas where a larger machine may be less convenient, while still allowing it to cover substantial grassed areas efficiently.

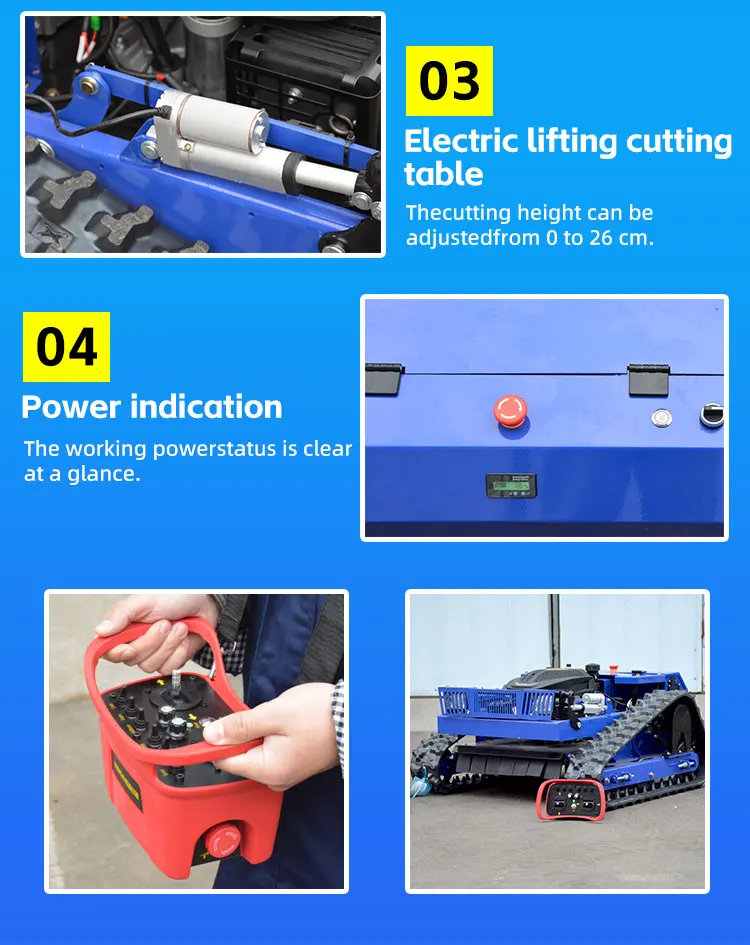

The mower offers an adjustable cutting-height range of approximately 0–260mm, allowing it to accommodate different vegetation heights and mowing requirements.

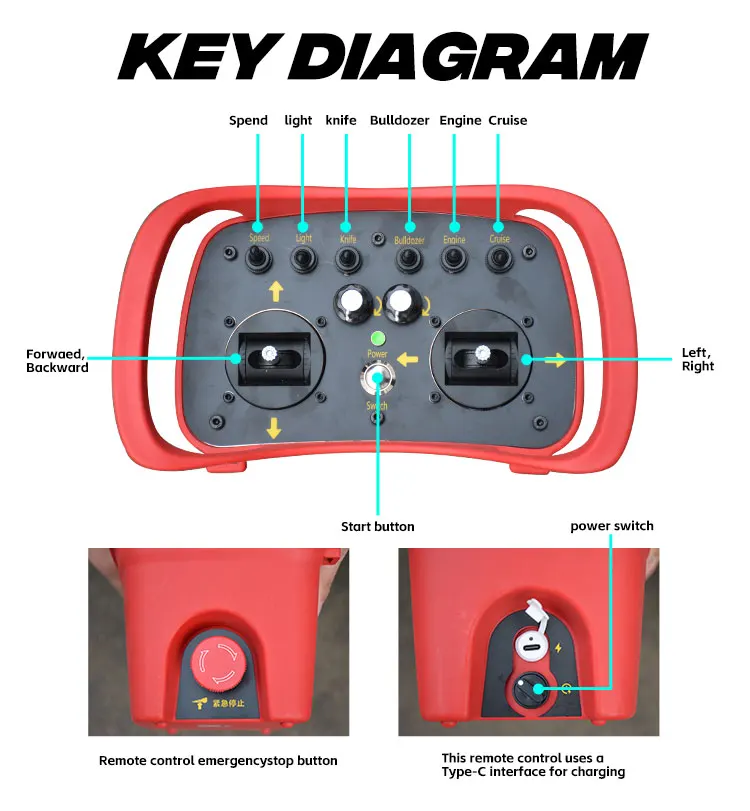

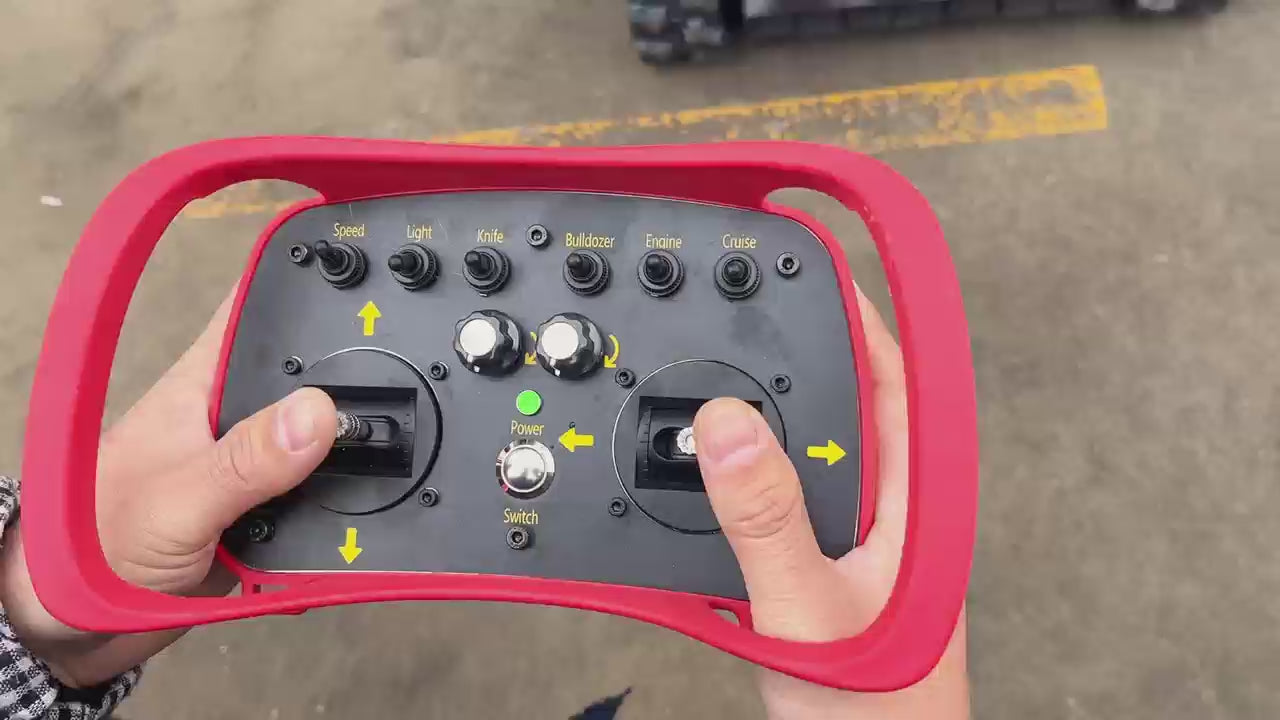

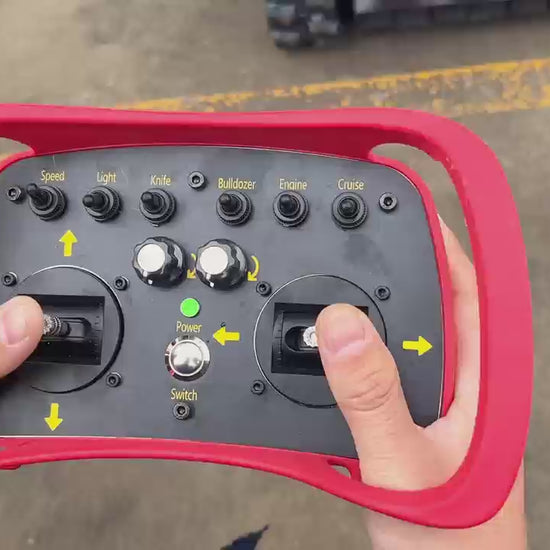

Remote Control Up to 500 Metres

The RLM-01 has a manufacturer-specified remote-control distance of up to 500 metres under suitable operating conditions.

Instead of walking directly behind the machine, the operator can control its movement remotely, providing greater flexibility when maintaining larger areas, uneven ground or sloping terrain.

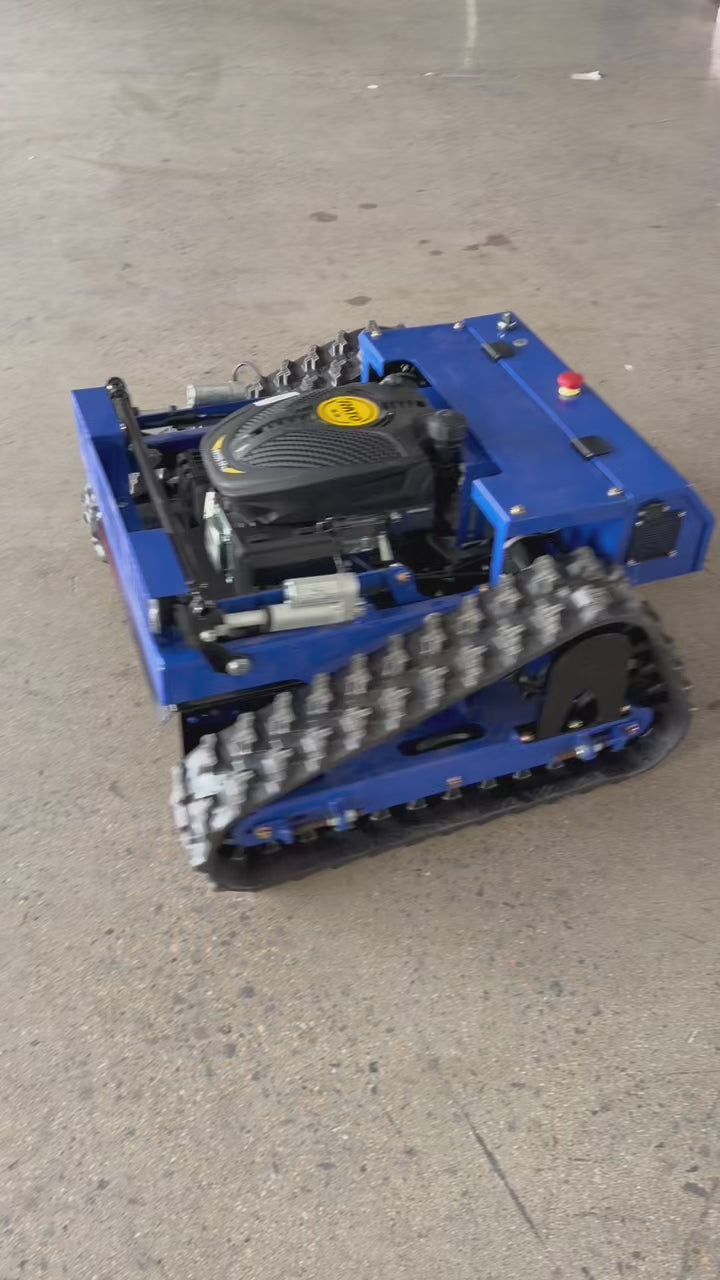

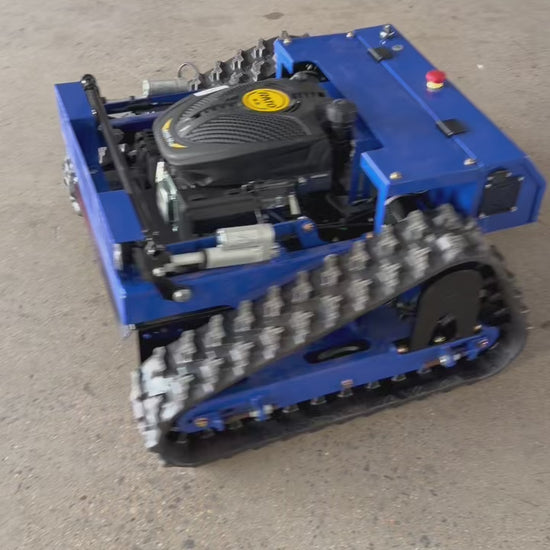

Electric Crawler Drive

The mower uses an electric crawler-type travel system, giving it the traction and controlled movement associated with tracked machinery.

The crawler design provides a broad contact area with the ground, helping the mower maintain stability while travelling over grass and uneven surfaces.

Travel speed is adjustable from approximately 0–3km/h, allowing the operator to adapt the mower's pace to different vegetation and terrain conditions.

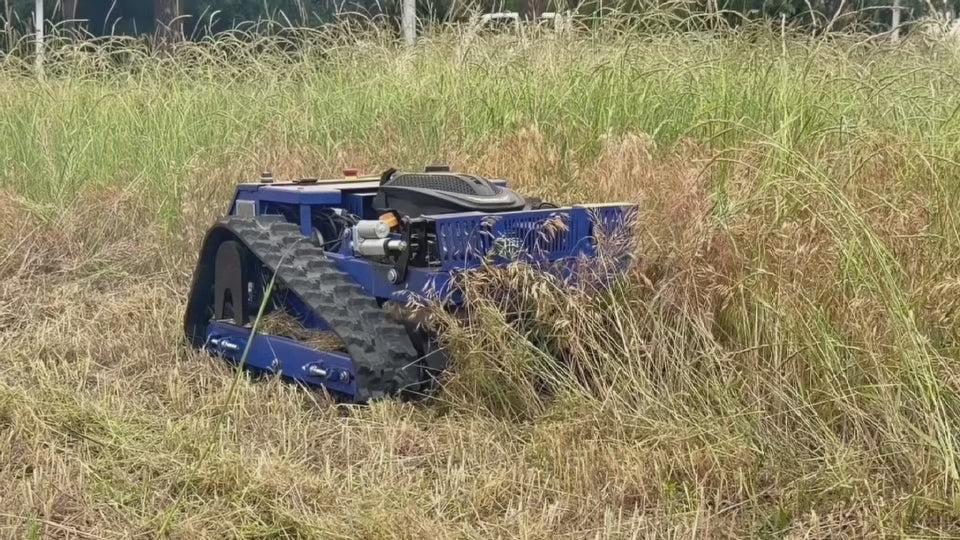

Designed for Sloping Ground

The manufacturer specifies a maximum slope capability of up to 60°.

The low-profile tracked configuration helps provide stability and traction when working on challenging terrain.

Actual safe operating capability depends on ground firmness, moisture, vegetation, direction of travel and other site conditions. Operators should always assess the terrain and operate the machine according to the supplied safety instructions.

Electric Start

The RLM-01 features an electric starting system, making engine startup convenient and straightforward.

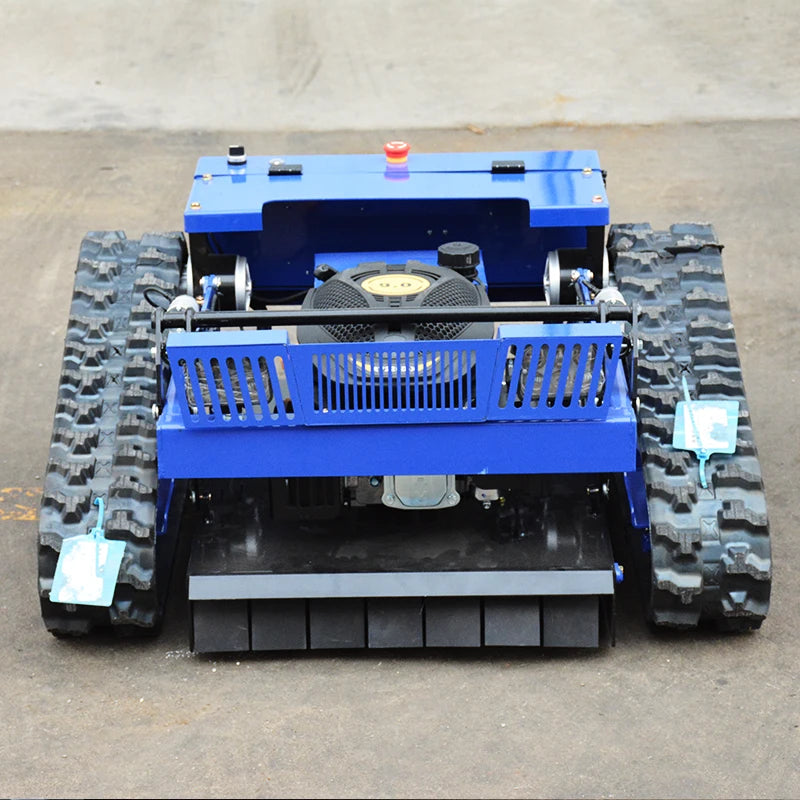

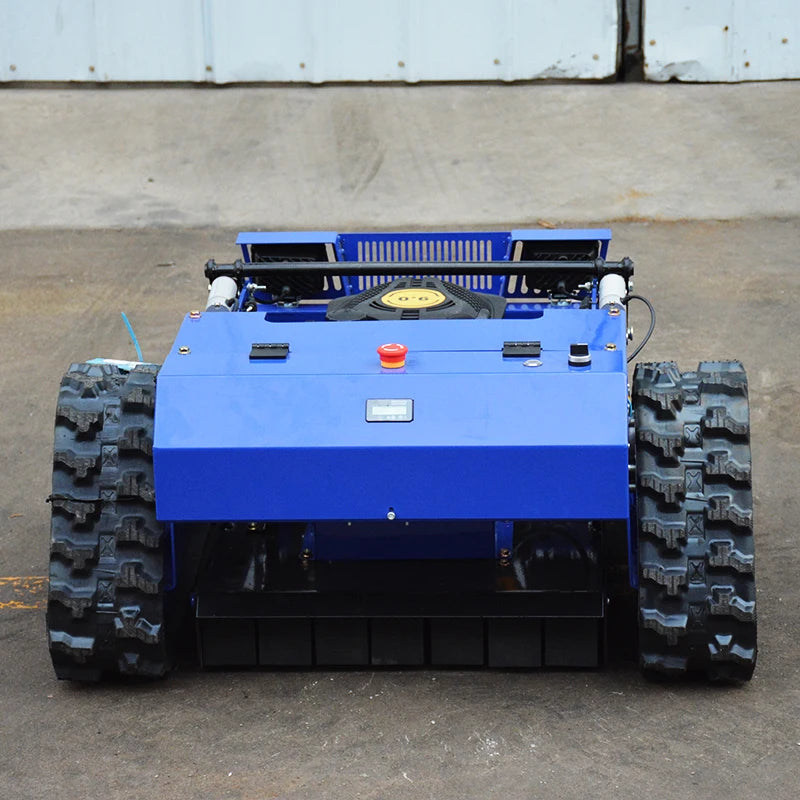

Compact and Manageable Design

One of the main advantages of the RLM-01 is its relatively compact overall size.

The machine measures approximately:

920 × 920 × 460mm

With a bare weight of approximately 140kg, the RLM-01 is considerably lighter than many larger tracked RC lawn mower models while still providing a substantial crawler platform and gasoline-powered cutting system.

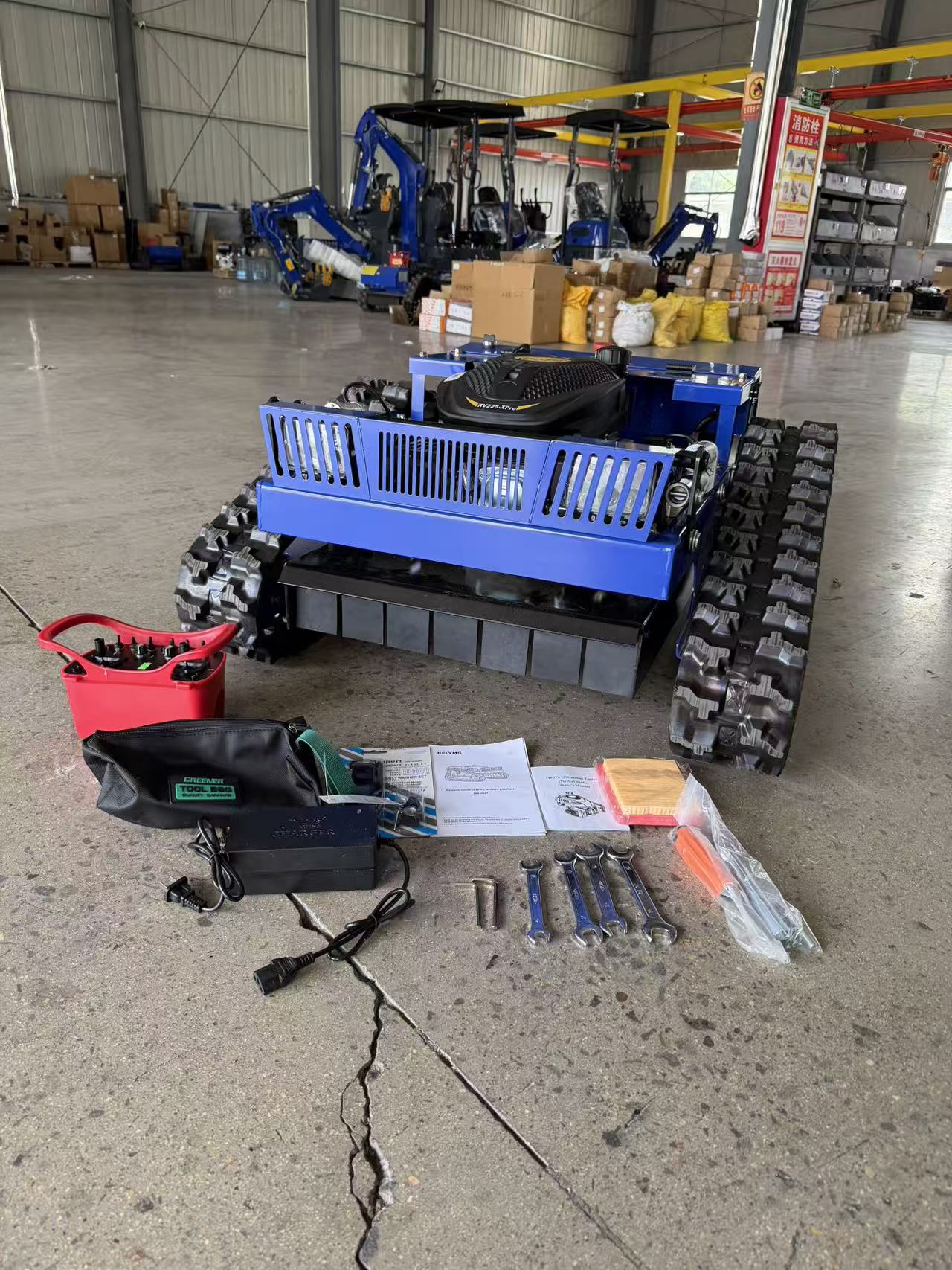

For international transportation, the mower is securely packed in a protective shipping crate.

The packaged mower weighs approximately 172.5kg, with packaging dimensions of approximately:

990 × 990 × 630mm

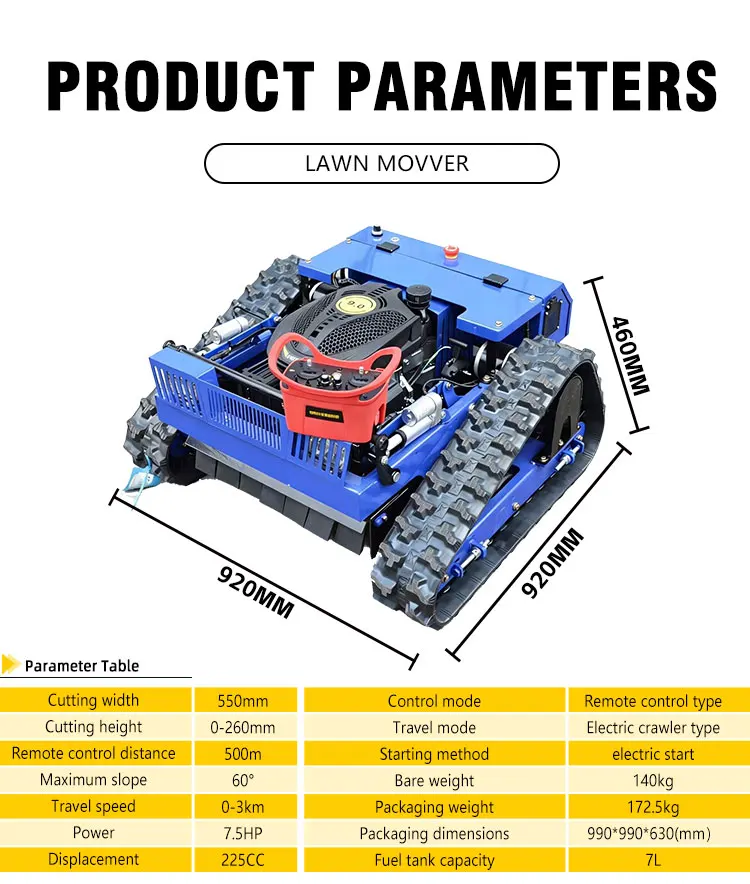

Key Specifications

• Product Name: RLM-01 RC Lawn Mower
• Cutting Width: 550mm
• Cutting Height: 0–260mm
• Engine Power: 7.5HP
• Engine Displacement: 225cc
• Fuel: Gasoline
• Fuel Tank Capacity: 7L
• Starting Method: Electric start
• Remote-Control Range: Up to 500m
• Maximum Manufacturer-Stated Slope: Up to 60°
• Travel Speed: 0–3km/h
• Travel Mode: Electric crawler type
• Control Mode: Remote control
• Bare Weight: Approximately 140kg
• Machine Dimensions: Approximately 920 × 920 × 460mm
• Packaged Weight: Approximately 172.5kg
• Packaging Dimensions: Approximately 990 × 990 × 630mm

Suitable Applications

• Residential properties
• Farms
• Orchards
• Estates
• Large gardens
• Commercial grounds
• Sloped grassed areas
• Uneven terrain
• General property maintenance
• Grass and vegetation management

Compact Size with Remote-Controlled Capability

The RLM-01 RC Lawn Mower is designed for customers who want a smaller and more manoeuvrable remote mower without giving up the advantages of gasoline-powered cutting and tracked mobility.

With its 7.5HP engine, 550mm cutting width, electric crawler system and up to 500m remote-control capability, the RLM-01 offers a practical combination of power, control and compact dimensions for a wide variety of mowing applications.
