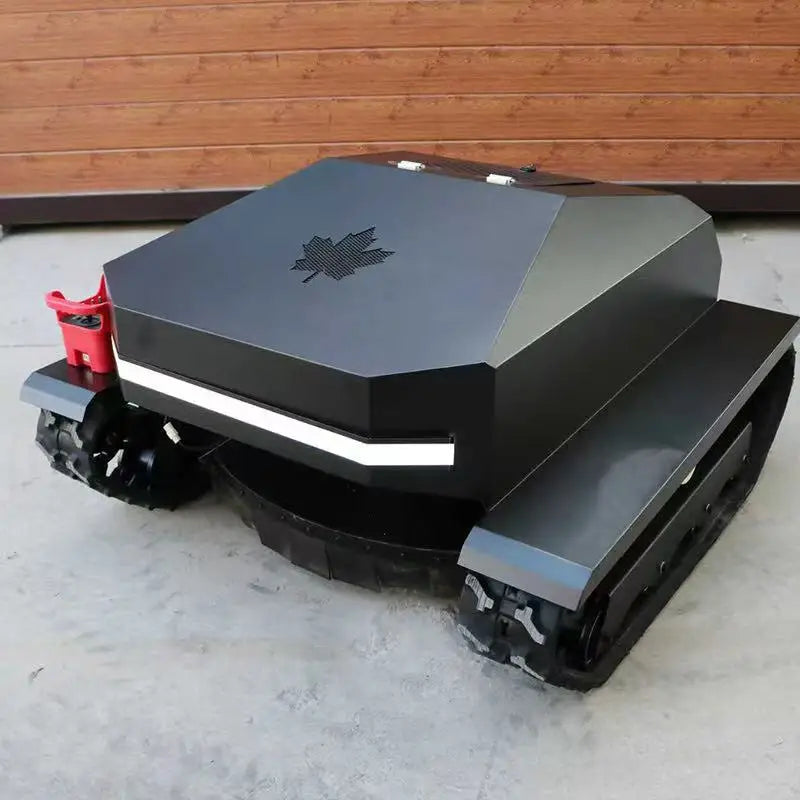

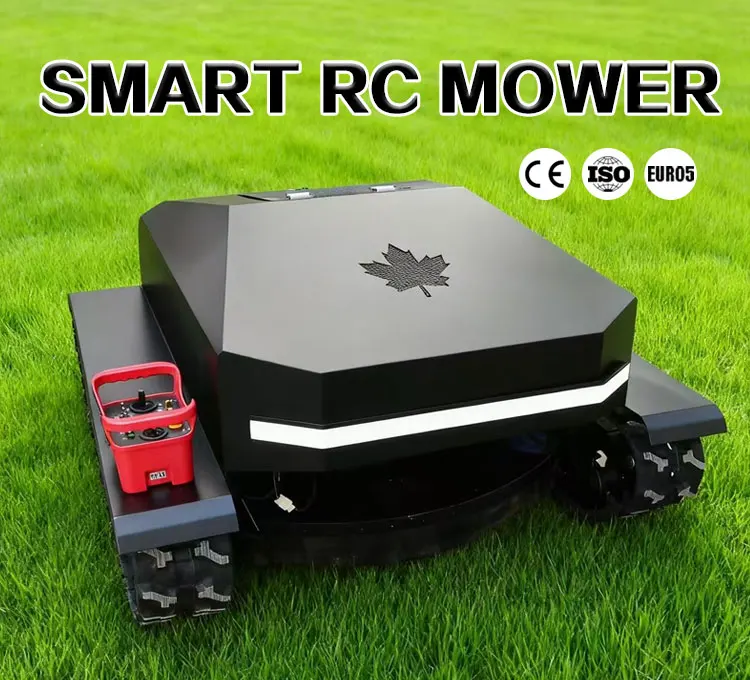

LX-01 RC Lawn Mower

Designed for demanding mowing environments, this 900mm remote-controlled crawler mower combines a powerful 22HP gasoline engine with a wide cutting deck and heavy-duty tracked drive system.

Rather than requiring an operator to walk behind or ride on the machine, the mower can be controlled remotely from distances of up to 500 metres, helping the operator maintain greater separation from steep slopes, dense vegetation and difficult terrain.

Built for More Demanding Cutting Work

At the heart of the mower is a 22HP, 608cc, 4-stroke gasoline engine. The larger engine and 900mm cutting width make this model particularly suitable for customers who need greater mowing capacity than smaller RC lawn mower configurations.

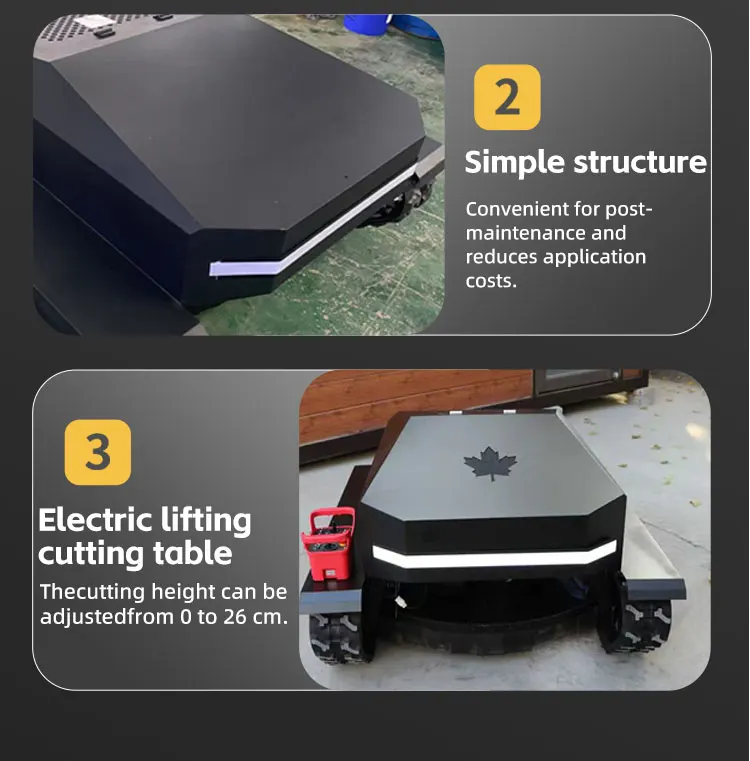

The cutting height can be adjusted between 0 and 260mm, giving the machine flexibility for different grass heights, vegetation and ground-maintenance requirements.

Tracked Drive for Difficult Terrain

The mower uses an electric crawler travel system, providing a broad contact area with the ground for improved stability and traction.

The manufacturer specifies a maximum slope capability of up to 60°, making this model particularly useful for locations where conventional push or ride-on mowers may be difficult or impractical to operate.

Potential applications include:

• Farms and agricultural land
• Orchards
• Large private properties
• Estates
• Commercial grounds
• Industrial sites
• Roadside vegetation
• Embankments
• Uneven terrain
• Sloped mowing areas
• Dense or overgrown grass

Remote Operation Up to 500 Metres

The remote-control system has a manufacturer-specified operating distance of up to 500 metres under suitable conditions.

This allows the operator to control the mower's movement and cutting operation from a distance rather than remaining directly beside the machine.

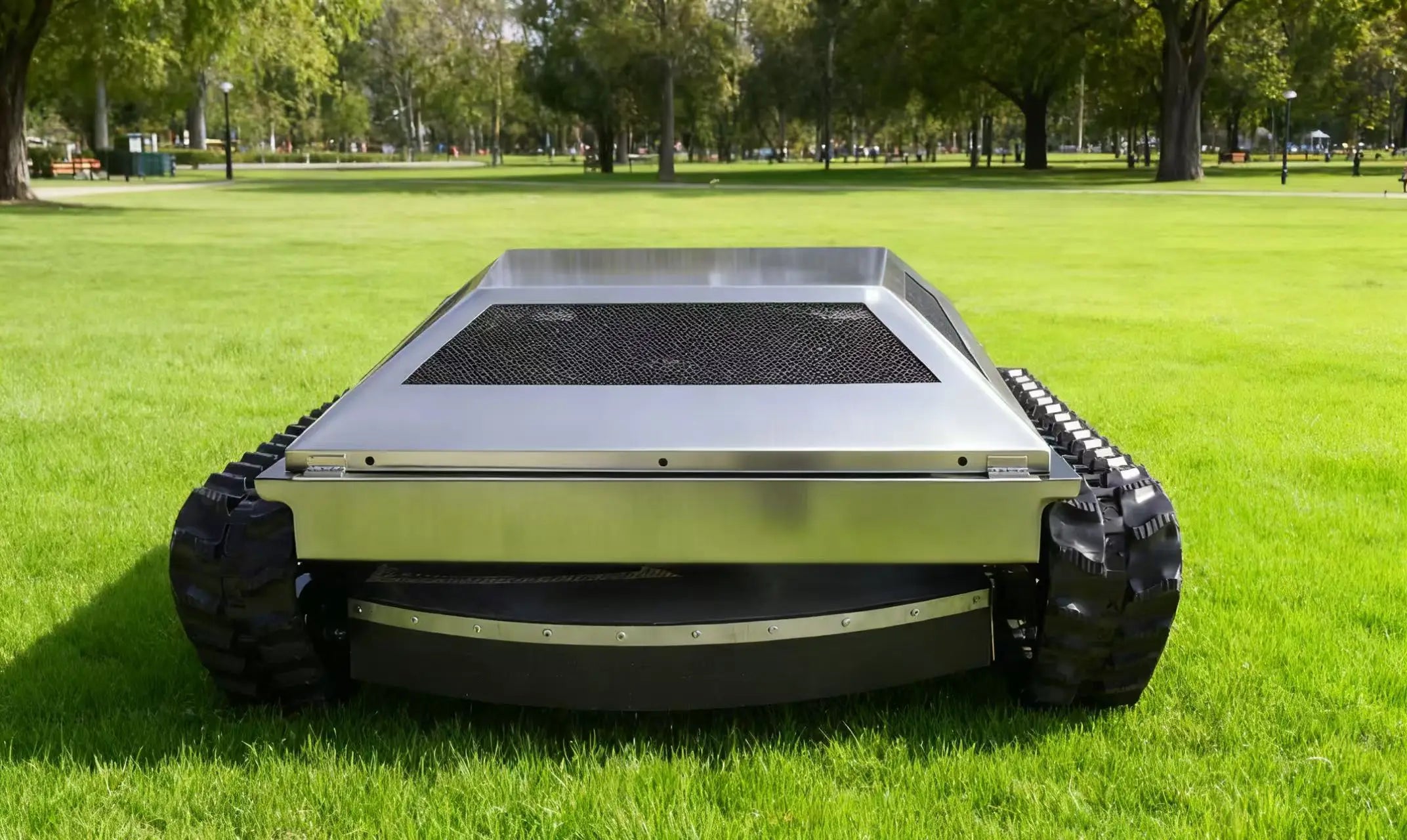

Strong, Low-Profile Construction

The machine has a wide and low structural design measuring approximately:

1300 × 1410 × 670mm

Its tracked chassis and approximately 360kg bare weight provide a substantial platform for mowing across challenging terrain.

For transportation, the complete mower is packed in a protective crate measuring approximately:

1410 × 1420 × 800mm

The packaged shipment weighs approximately 450kg.

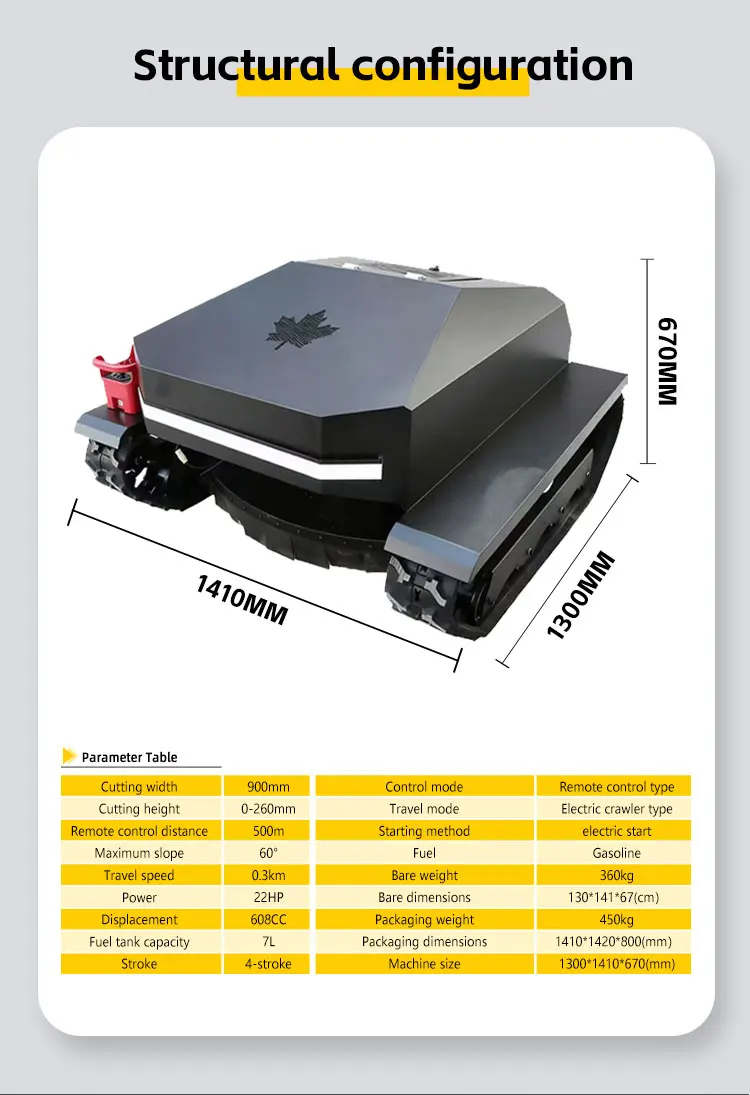

Key Specifications

• Cutting width: 900mm
• Cutting height: 0–260mm
• Engine power: 22HP
• Engine displacement: 608cc
• Engine type: 4-stroke
• Fuel: Gasoline
• Fuel tank capacity: 7 litres
• Remote-control range: Up to 500 metres
• Maximum stated slope: Up to 60°
• Travel system: Electric crawler drive
• Starting system: Electric start
• Bare machine weight: Approximately 360kg
• Machine dimensions: 1300 × 1410 × 670mm
• Packaged weight: Approximately 450kg
• Packaging dimensions: 1410 × 1420 × 800mm

A Larger RC Mower for Serious Ground Maintenance

With its 900mm cutting width, 22HP engine, tracked drive and remote-control operation, this model is positioned as a heavier-duty option for customers maintaining larger or more challenging areas.

It provides the cutting power of a gasoline-powered machine together with the convenience of remote operation, making it an excellent choice where productivity, traction and mowing capability are priorities.
